Geberit Duofix Toilet Frame For Wall Hung WC With Sigma 12cm Concealed Cistern

Geberit Sigma 12cm concealed cisterns are the classics of modern bathroom installations and have been installed a millions of times around the world for more than 50 years. They are known for their reliability, as every cistern is leak-tested before it is delivered. The 25-year guaranteed spare parts availability provides long-term security. The flush volume of the Geberit Sigma concealed cistern 12 cm can be limited to 4.5 litres.

Toilet frame features

Frame height 98cm or 112cm
Concealed cistern with front actuation
Odour extraction (recirculating air/exhaust air)
Suitable for Geberit remote flush actuation
Flush volume, factory setting: 5.8 and 3 litres
Geberit flush plates not included. Sold separately

Characteristics of the Geberit Duofix Toilet Frame

Height of 98cm or 112cm, adjustable from 0 to 20cm
Frame dimensions:

W 50cm x H 98cm x D 12cm
W 50cm x H 112cm x D 12cm

Self-supporting frame, powder-coated
Frame with a diameter of 9 mm drilling holes for fastening in wood frame construction
Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
Galvanized feet
Non-slip leg supports
Rotatable foot plates
Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails
Connection bend can be mounted without tools at different depths, adjustable range 45 mm
Fastening for connection bend, sound-absorbing
Concealed cistern with top or front actuation
Concealed cistern fully insulated against condensation
Cistern fulfils standard requirements in accordance with EN 14055, Class II
Immediate post flush possible with factory setting
Tool-free installation and maintenance work on concealed cistern
Water supply connection on the left or rear left
Protection cover box for service opening protects against moisture and dirt
Protection box for service opening can be cut to length
Equipped with conduit pipe
With fastening option for electrical connection
10 year manufacturer's guarantee

The frame comes with the following

Water supply connection Rp 1/2" - R 1/2", compatible with MF, with integrated angle stop valve and hand wheel
Protection box for service opening
2 wall anchors
Connection set for WC ø 90 mm
Connection bend 90° made of PE-HD ø 90 mm
Adaptor socket made of PE-HD ø 90 / 110 mm
2 protection plugs
Cup for flush volume reduction 4.0 / 2.6 l
2 threaded rods M12
Fastening material

Additional information

Any boarding must be fixed tight up against the face of the Duofix frame and screwed directly to the frame
The cistern can be operated with used water (rainwater) provided it is passed through a filter system first
Flush valve features settings to enable either a 6 l and 3 l flush or a 4.5 l and 3 l flush. Note: must be used with pans designed for low volume flush

Geberit Duofix Frame For Wall-Hung WC With Concealed Cistern and Chrome Flush Plate

Geberit Duofix Toilet Frame For Wall Hung WC with Sigma 12cm Concealed Cistern

Geberit Sigma Dual Flush Plate for Concealed Cistern

Geberit Smyle Square Rimless Wall Hung WC Pan With Soft Close Toilet Seat

Geberit One Rimless Wall Hung TurboFlush WC Pan With Soft Close Seat

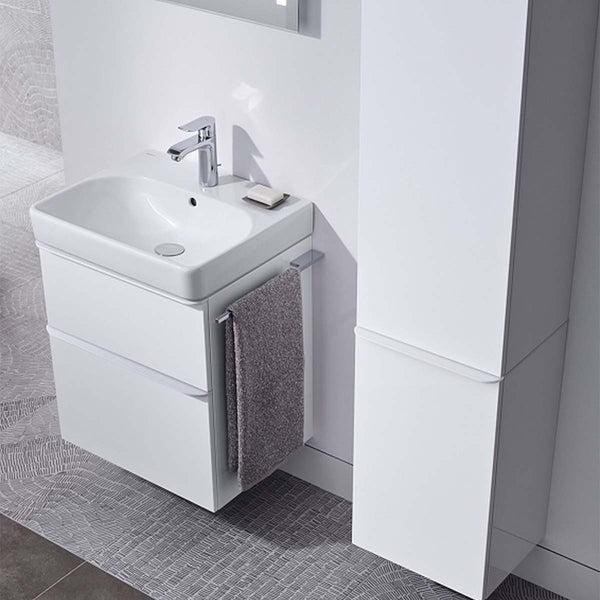

Geberit Smyle Square 600 Two Drawer Wall Hung Vanity Unit and Tall Storage Cabinet - White Gloss
