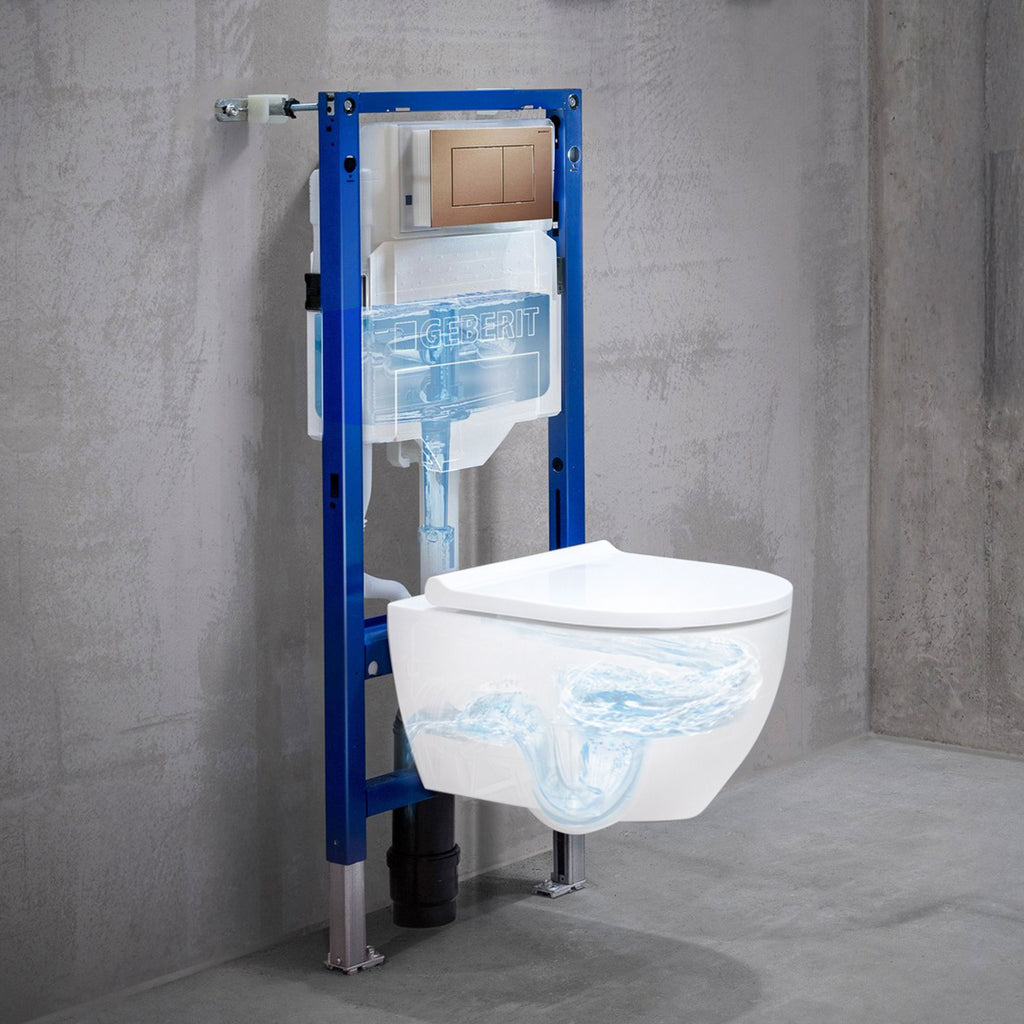

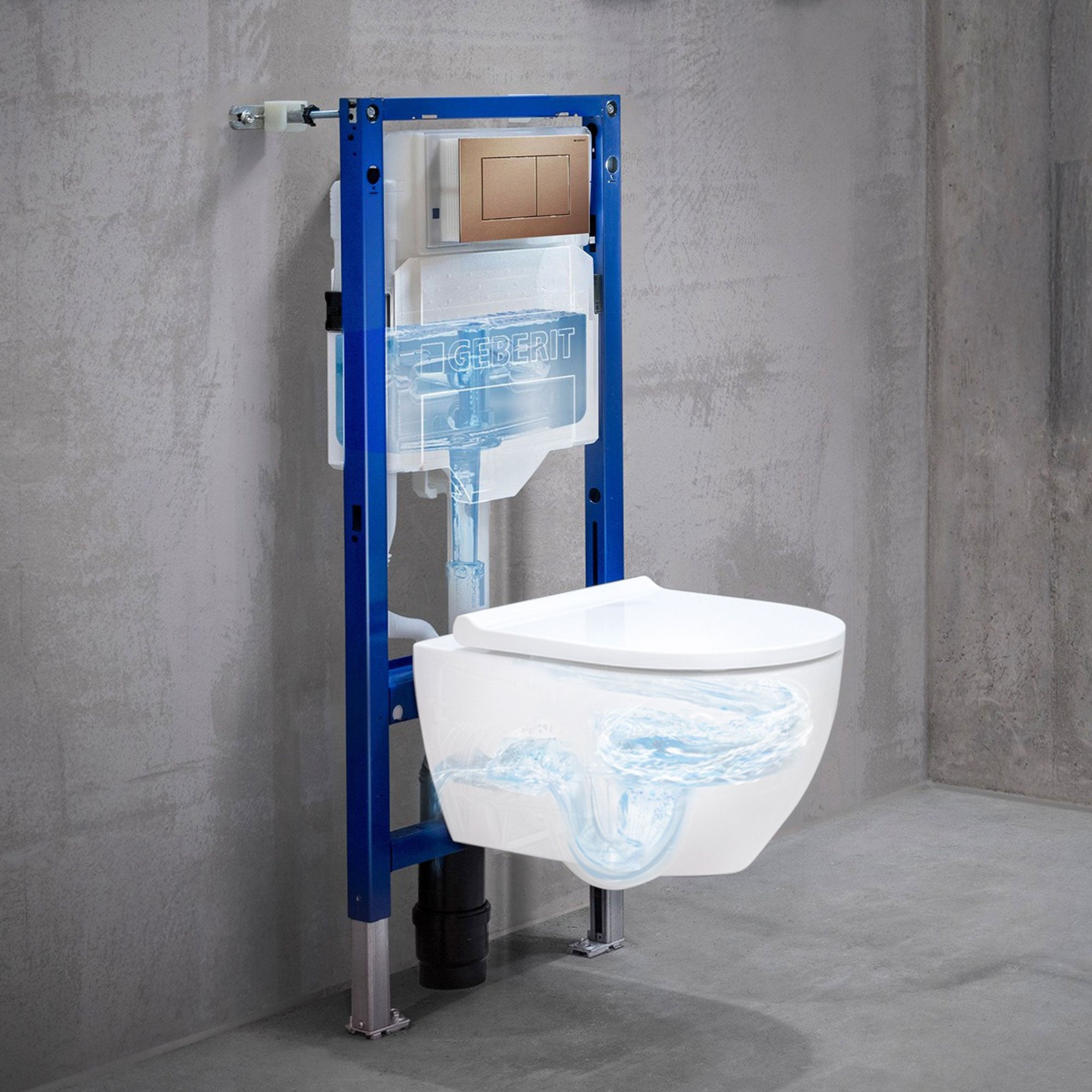

Geberit Duofix Toilet Frame For Wall Hung WC With Sigma 12cm Concealed Cistern
Geberit Sigma 12cm concealed cisterns are the classics of modern bathroom installations and have been installed a millions of times around the world for more than 50 years. They are known for their reliability, as every cistern is leak-tested before it is delivered. The 25-year guaranteed spare parts availability provides long-term security. The flush volume of the Geberit Sigma concealed cistern 12 cm can be limited to 4.5 litres.
Toilet frame features
- Frame height 98cm or 112cm
- Concealed cistern with front actuation
- Odour extraction (recirculating air/exhaust air)
- Suitable for Geberit remote flush actuation
- Flush volume, factory setting: 5.8 and 3 litres
- Geberit flush plates not included. Sold separately
Characteristics of the Geberit Duofix Toilet Frame
- Height of 98cm or 112cm, adjustable from 0 to 20cm
- Frame dimensions:
- W 50cm x H 98cm x D 12cm
- W 50cm x H 112cm x D 12cm
- Self-supporting frame, powder-coated
- Frame with a diameter of 9 mm drilling holes for fastening in wood frame construction
- Frame prepared for support brackets for WC ceramic appliances with small contact surfaces
- Galvanized feet
- Non-slip leg supports
- Rotatable foot plates
- Foot plate depth suitable for installation in U-profiles UW 50 and UW75 and Geberit Duofix system rails
- Connection bend can be mounted without tools at different depths, adjustable range 45 mm
- Fastening for connection bend, sound-absorbing
- Concealed cistern with top or front actuation
- Concealed cistern fully insulated against condensation
- Cistern fulfils standard requirements in accordance with EN 14055, Class II
- Immediate post flush possible with factory setting
- Tool-free installation and maintenance work on concealed cistern
- Water supply connection on the left or rear left
- Protection cover box for service opening protects against moisture and dirt
- Protection box for service opening can be cut to length
- Equipped with conduit pipe
- With fastening option for electrical connection
- 10 year manufacturer's guarantee
The frame comes with the following
- Water supply connection Rp 1/2" - R 1/2", compatible with MF, with integrated angle stop valve and hand wheel
- Protection box for service opening
- 2 wall anchors
- Connection set for WC ø 90 mm
- Connection bend 90° made of PE-HD ø 90 mm
- Adaptor socket made of PE-HD ø 90 / 110 mm
- 2 protection plugs
- Cup for flush volume reduction 4.0 / 2.6 l
- 2 threaded rods M12
- Fastening material
- Any boarding must be fixed tight up against the face of the Duofix frame and screwed directly to the frame
- The cistern can be operated with used water (rainwater) provided it is passed through a filter system first
- Flush valve features settings to enable either a 6 l and 3 l flush or a 4.5 l and 3 l flush. Note: must be used with pans designed for low volume flush
