SharpSlope Wet Room Shower Tray Base Kit with Square Panel Drain
The SharpSlope wet room shower tray base kit has been specifically designed to create a waterproof environment for installing wet rooms and walk-in showers in properties with timber and concrete flooring. Containing everything you need to tank a wetroom, this high quality kit is suitable for both minimalist and modern designs alike, and can be incorporated into any size bathroom and shower area.
The shower tray base has a water-repellent core made of extruded polystyrene foam and an extremely low installation height with incorporated 4 sided drainage fall. They also feature a cementitious coating on the top layer that permits direct tiling without the need for additional preparatory work. The whole base is completely waterproof and stable - it is not affected by moisture, humidity or movement in the substrate.

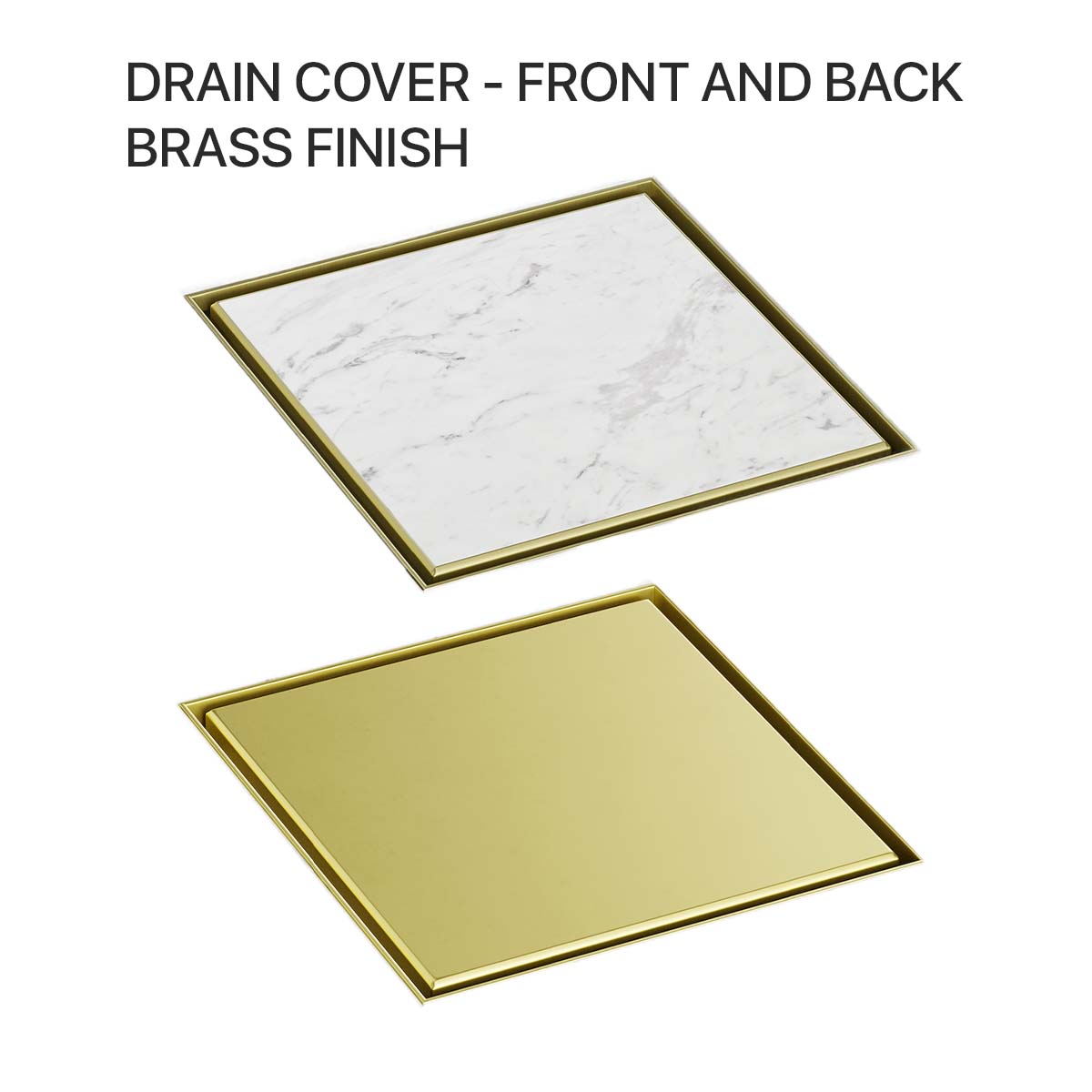

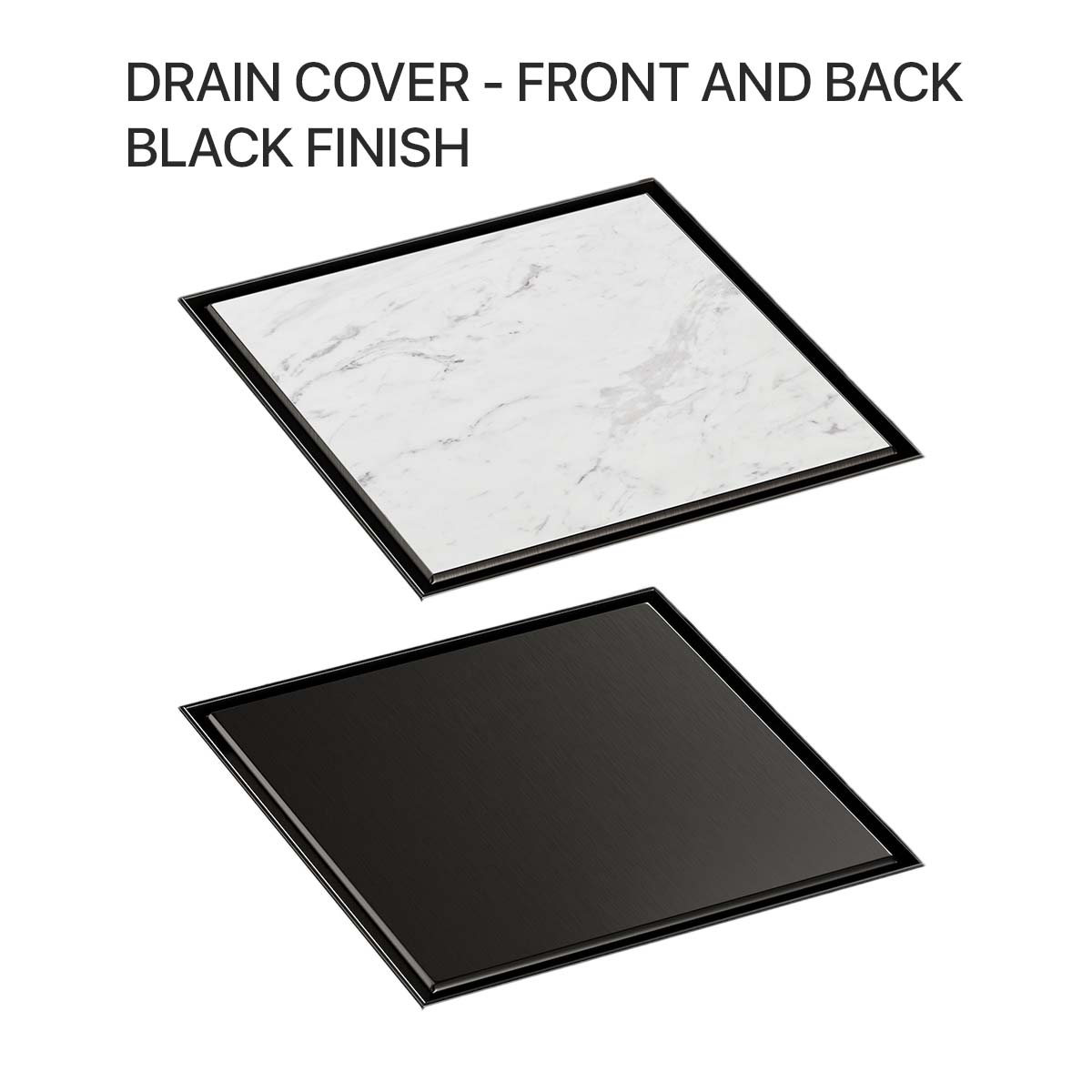

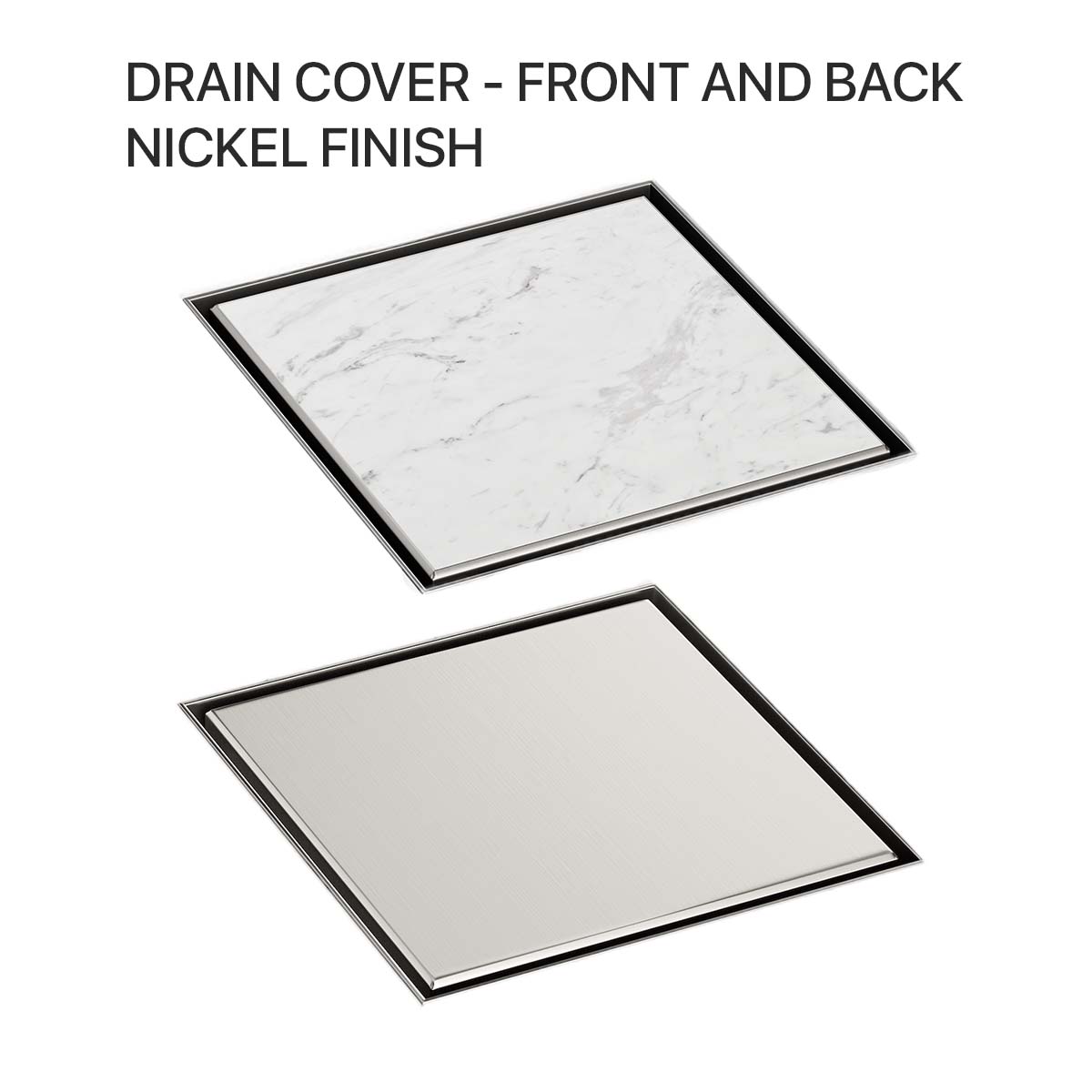

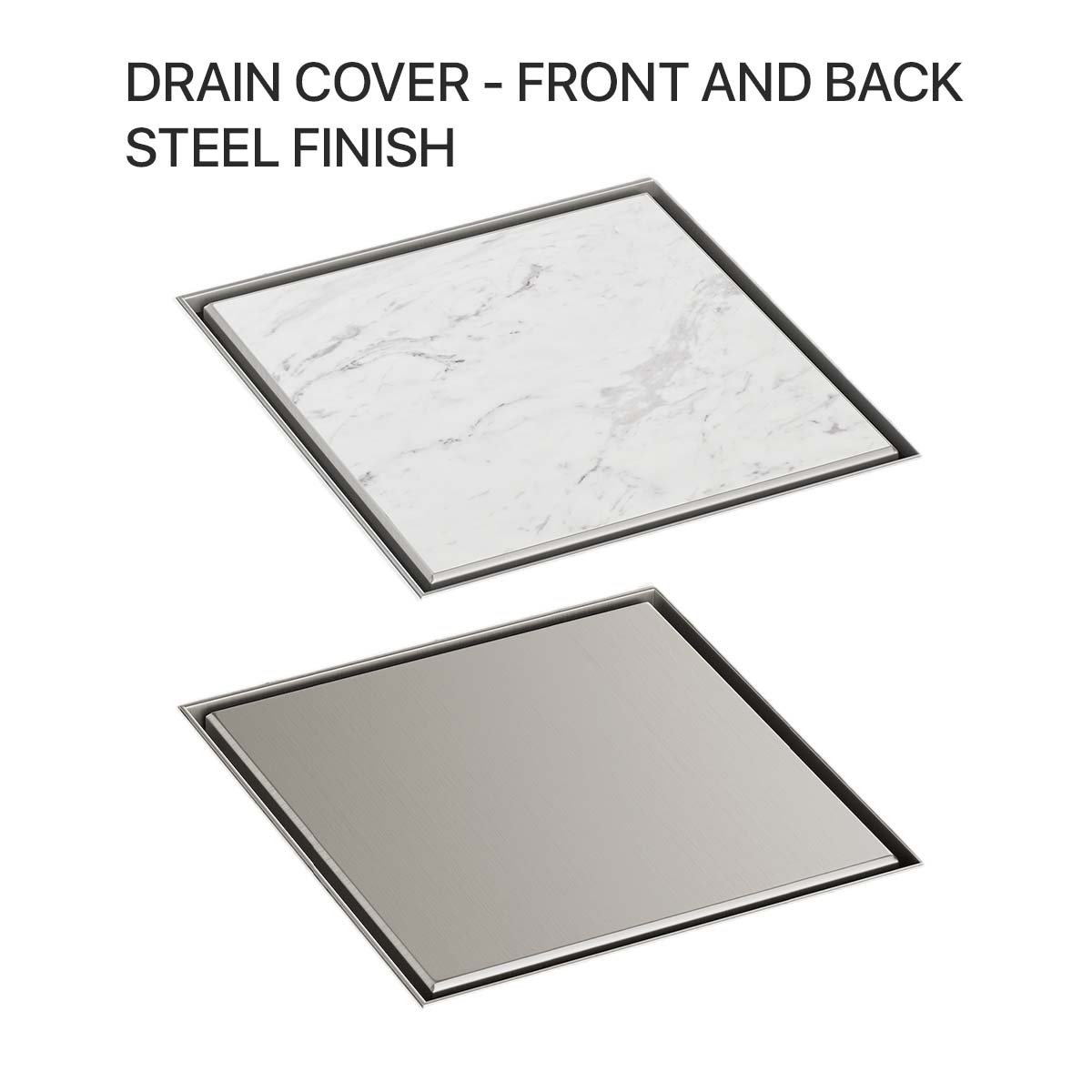

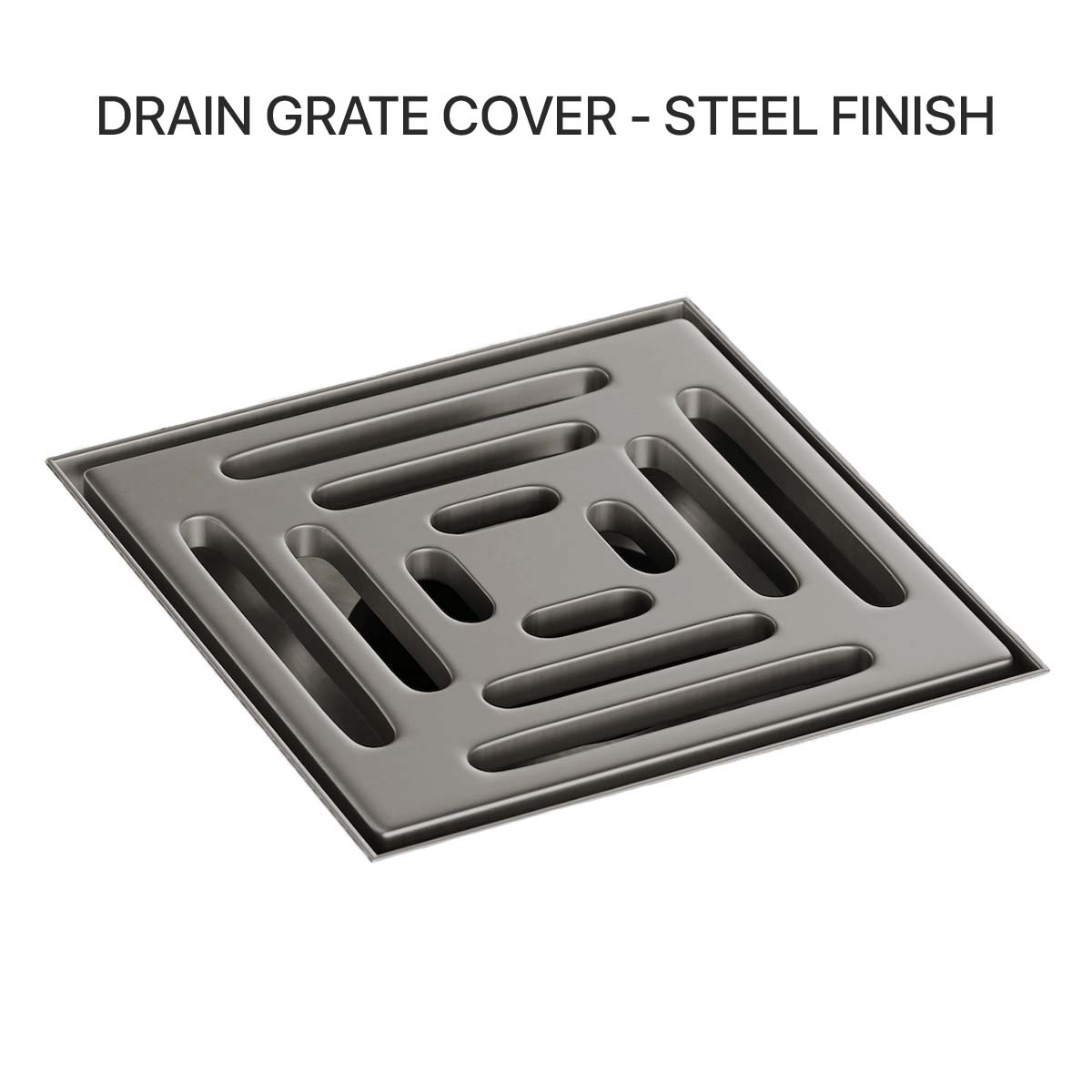

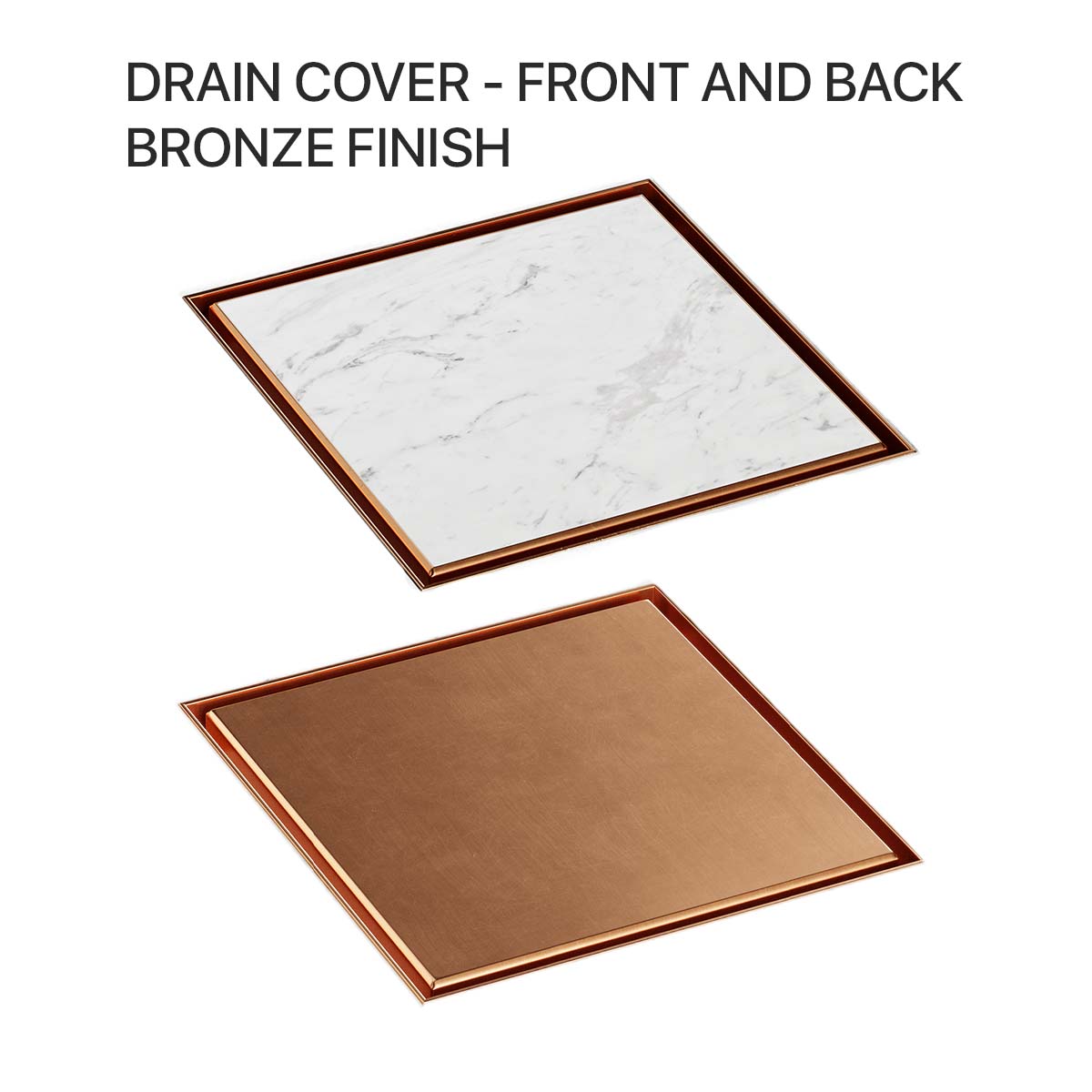

Several drain cover options are available; you can select a steel grate or a selection of drain panels. The drain panels come with several luxurious finishes all of which can be flipped upside down so you can insert a tile into it, ideal when you plan to tile onto the tray base, so both the area surrounding the drain and the drain itself have the same tile creating a seamless wetroom appearance. (see images for examples of drain with and without tile)
For information on how to install the base kit see the installation guide video below or the Installation Instructions pdf in the Product Downloads section.
Wetroom Shower Tray Base Kit Includes
- Preformed wet room tray
- Waterproofing membrane
- 25 metre reinforcement tape
- 1 Litre primer
- Integrated Drain - 40mm outlet
- Sealed gasket
- 50mm water seal
- Drain frame & panel
- Construction glue
Wetroom Shower Tray Base Kit Features
- 100% waterproof construction
- Extremely low installation height
- Preformed tray with gradient built in for the slope
- Level access can be achieved on all 4 sides
- Integrated stainless steel drain with sealed gasket
- Outlet can be rotated 360°
- Can be trimmed
- Suitable for both small and large tiles of minimum thickness 8mm
- Compatible with underfloor heating
- Choice of drain cover colours available
- Drain covers are coated with PVD finish that won’t fade or tarnish
Wetroom Shower Tray Base Sizes (Width x Length x Depth)

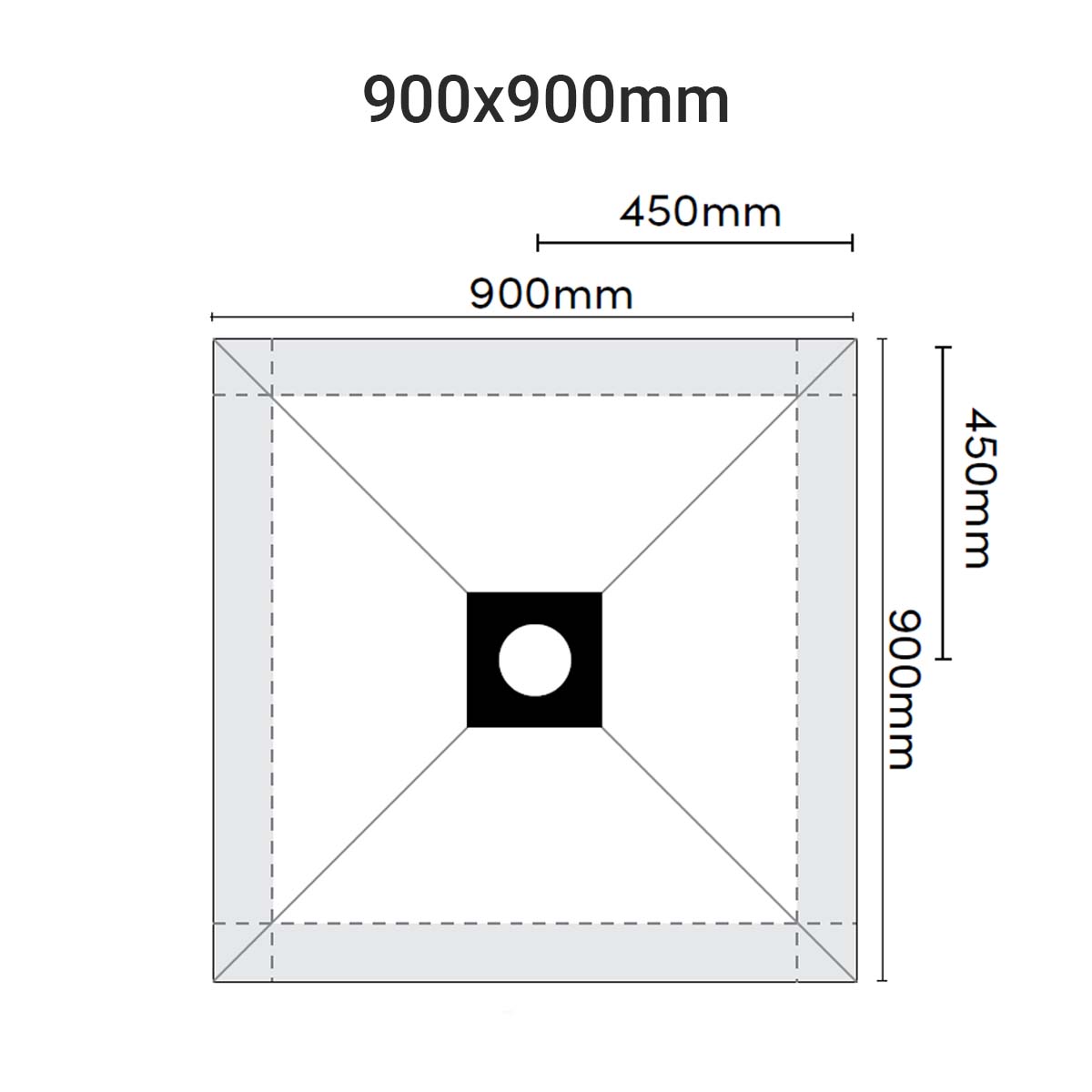

- W 900 x L 900 x D 22mm

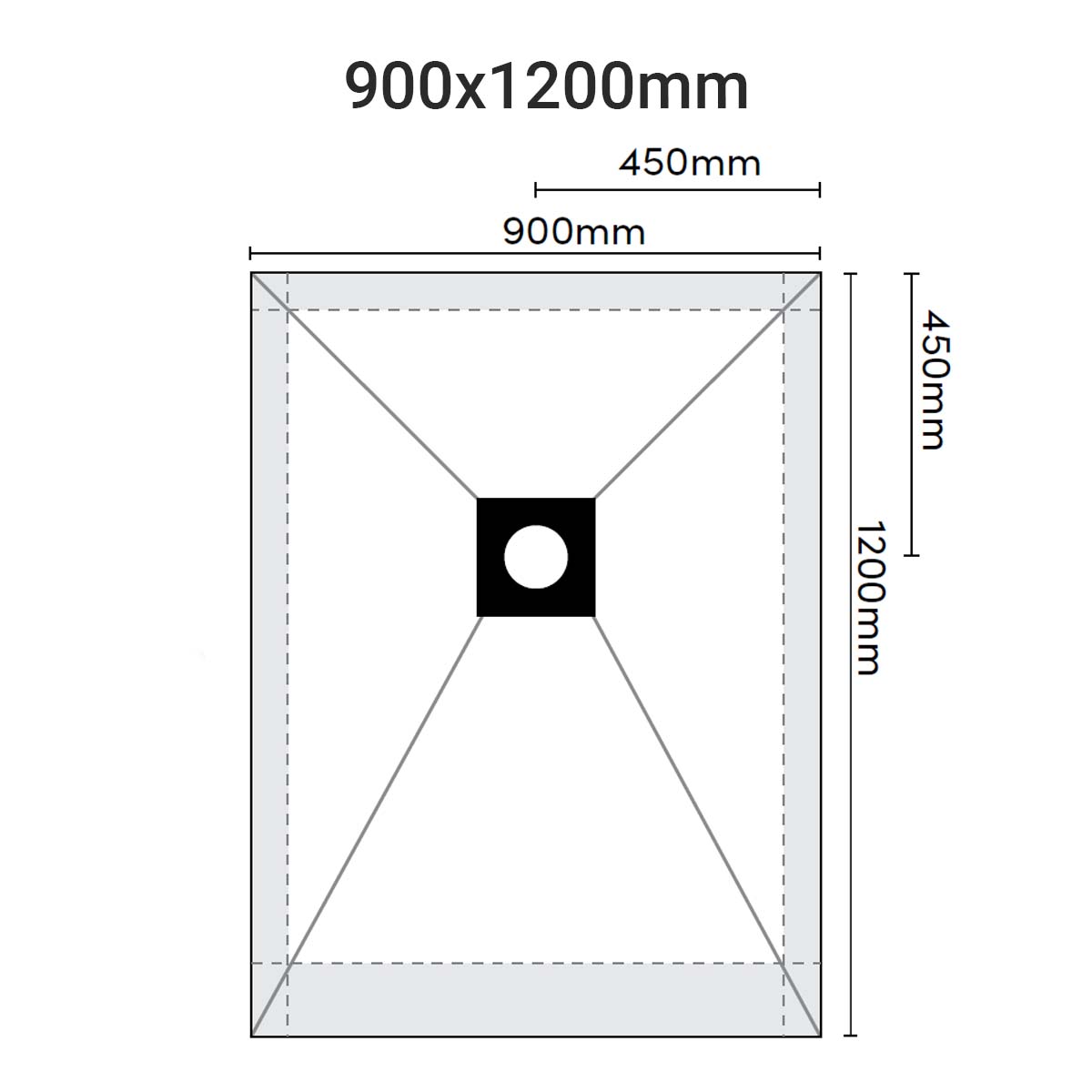

- W 900 x L 1200 x D 22mm

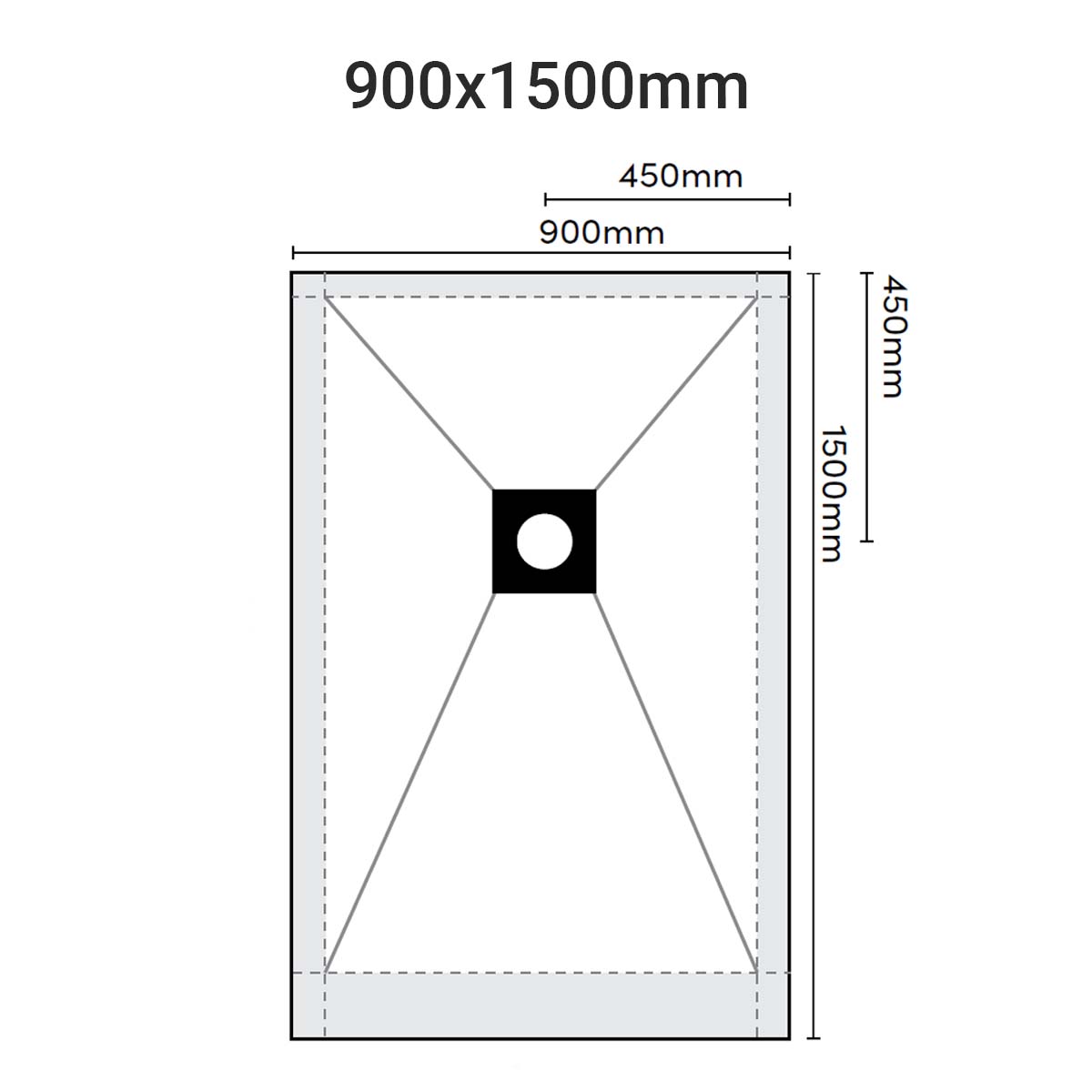

- W 900 x L 1500 x D 27mm

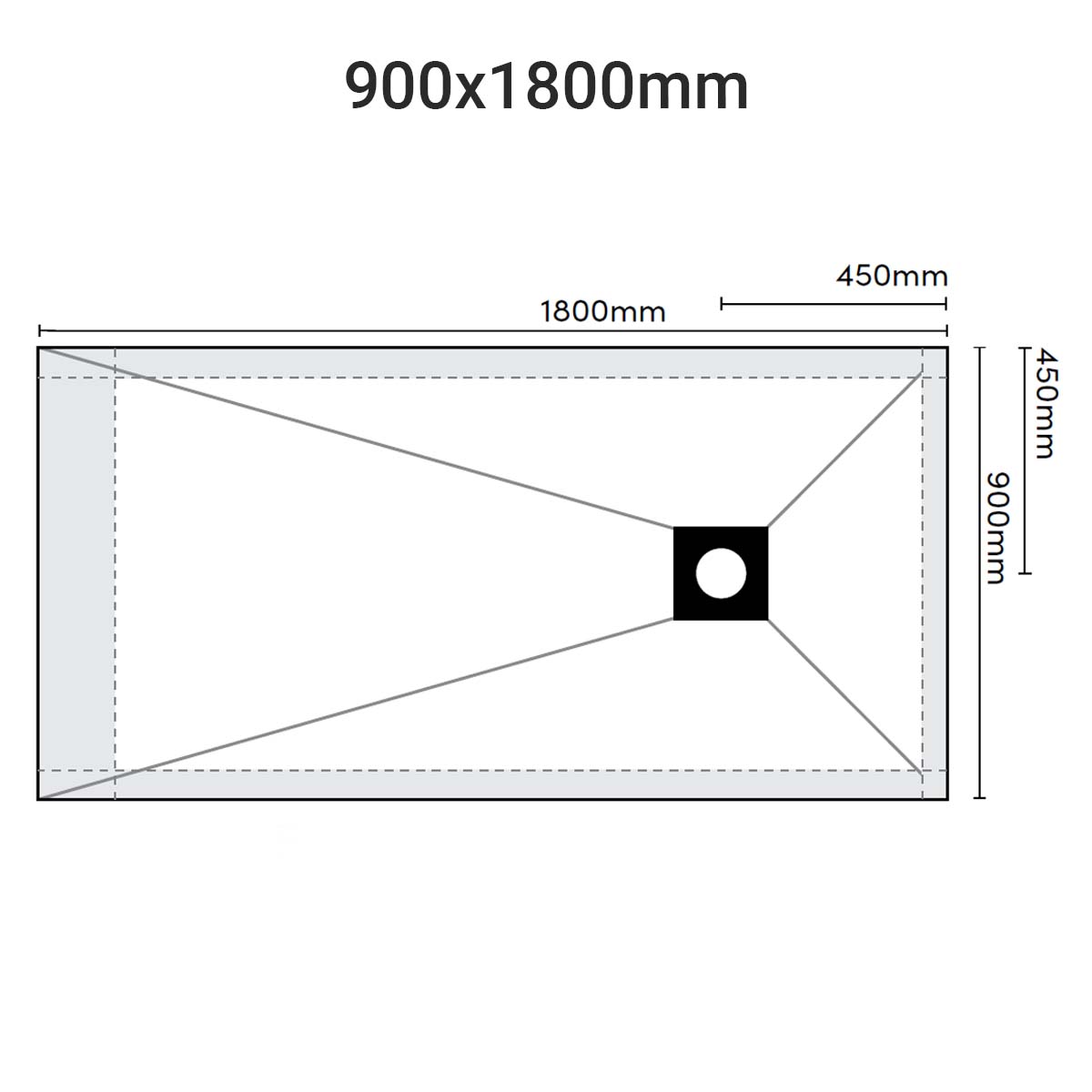

- W 900 x L 1800 x D 30mm

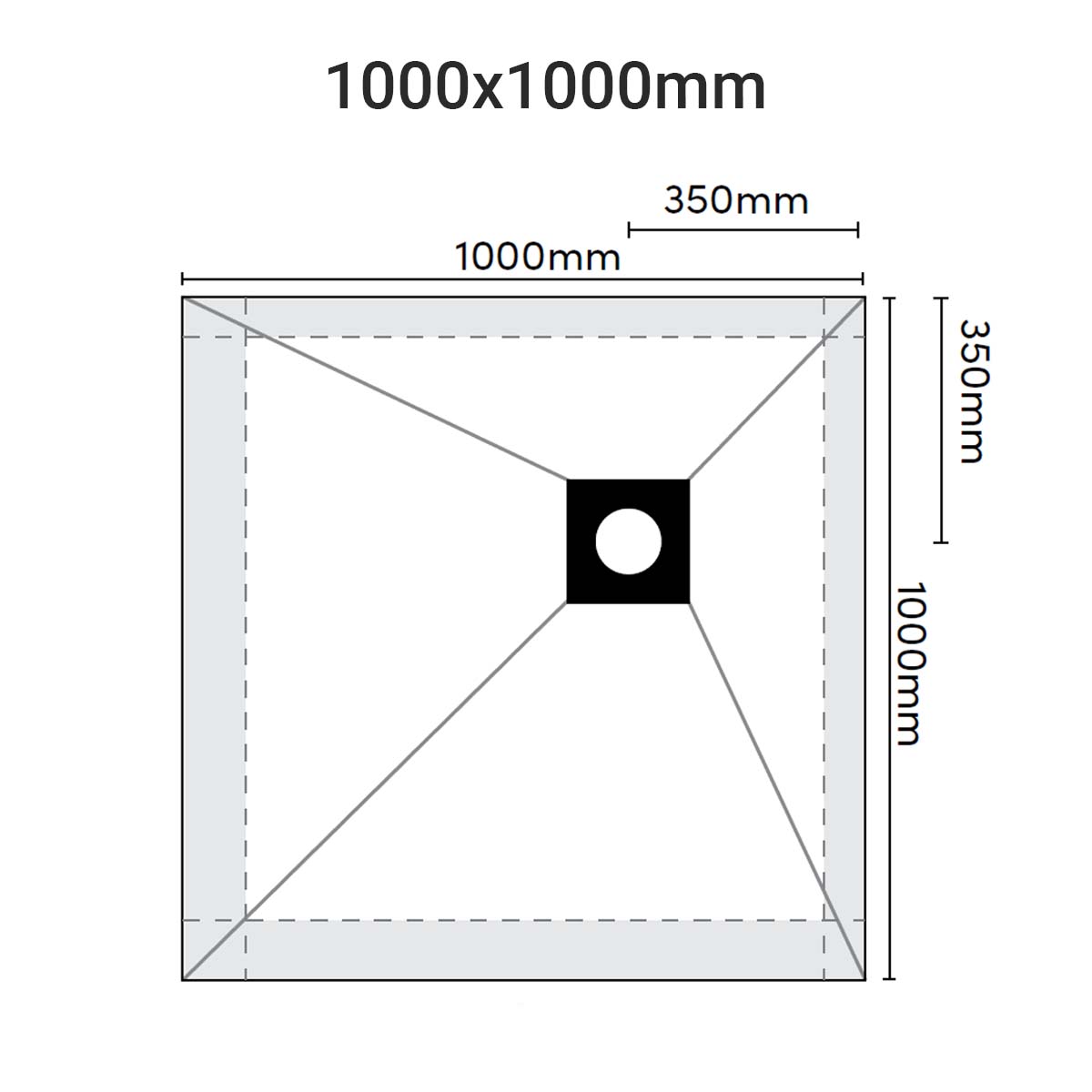

- W 1000 x L 1000 x D 22mm

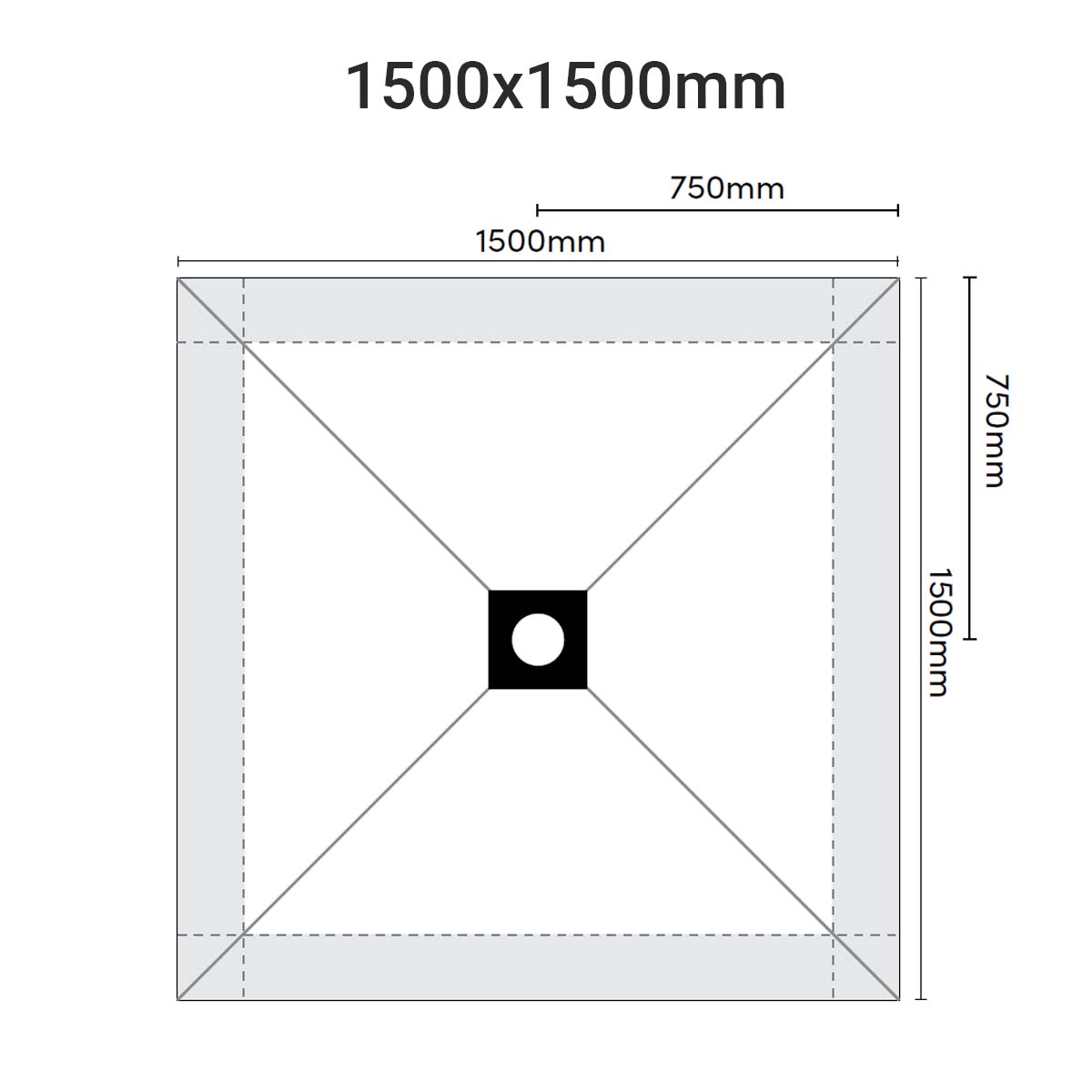

- W 1500 x L 1500 x D 27mm
- Wood or concrete subfloor
- Tiled floor finish
- Wet rooms
- Level access
- Raised on platform
- Underfloor heating
Not suitable for
- Vinyl floor finish
- Fitting direct on joists
Wetroom Shower Tray Base Specifications
|Product Type||Shower tray base for wet rooms|
|Shower Base Material||Polystyrene foam (XPS)|
|Shower Base Shape||Square & Rectangle
|Colour||Grey with yellow
|Thickness||22 to 30mm|
|Waste position||Centre & Offset (see images)|
|Drain||Horizontal (vertical option available)|
|Drain panel material||Stainless steel|
|Guarantee||10 year manufacturer's guarantee|
- SharpSlope wetroom/shower bases are not self-supporting. In order to support the base firmly when creating a level-entry design on a suspended timber floor a sub-floor must be constructed between the joists using, for example, 18mm plywood.
- The waterproofing kit includes an easy-to-apply solvent-free paint-on liquid membrane that dries as one continuous sheet and is designed to move and stretch with the building.
- Tested to international standards and are ETAG 022-1 certified, and EC1 Plus approved. The kit also complies with EN 1253.
- Tiles, shower and glass enclosures seen in product photos are not included. Sold separately.
SharpSlope Wet Room Shower Tray Base Kit - Square Panel Drain Installation Instructions
SharpSlope Wet Room Shower Tray Base Kit - 900x900mm Technical Information
SharpSlope Wet Room Shower Tray Base Kit - 900x1200mm Technical Information
SharpSlope Wet Room Shower Tray Base Kit - 900x1800mm Technical Information
SharpSlope Wet Room Shower Tray Base Kit - 1000x1000mm Technical Information
SharpSlope Wet Room Shower Tray Base Kit - 1500x1500mm Technical Information
