Jackoboard Aqua Line Easy Shower Tray Board For Linear Drain

Fast Delivery

Spend €1500+ – Get €100 off
Spend €2000+ – Save €200
Spend €3000+ – Take €300 off
Spending even more? The savings keep adding up! No code required.
*Excludes Crosswater, Burlington, Jacuzzi, Triton & Mira Showers and job lot offers.

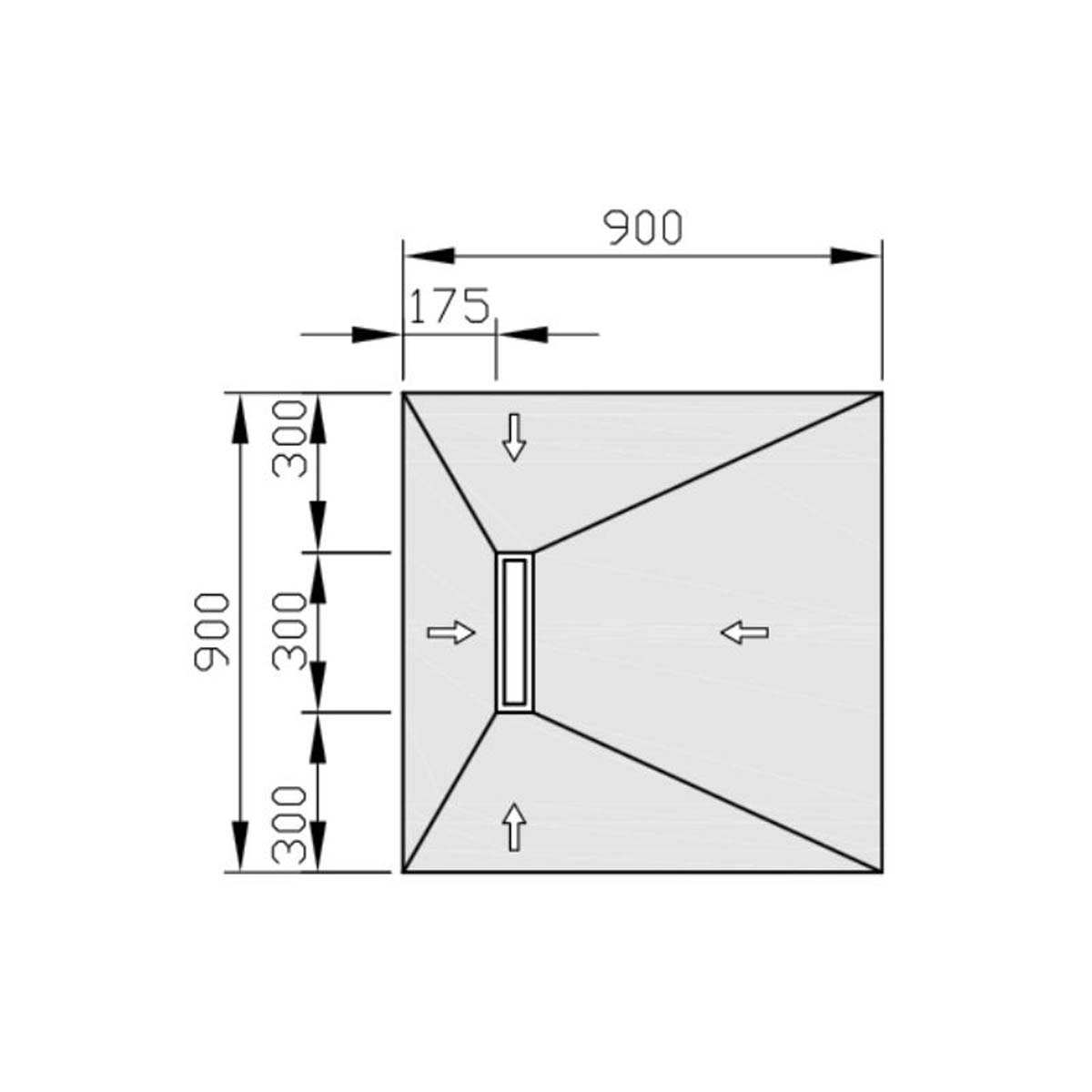

Size (W x L x D): 900 x 900 x 30mm - End Drain

Please note: drain not included. Select from the options below.

Price:
Sale price€771.95

Price including VAT

Availability:
7 - 10 days lead time

or 12 monthly payments of €67.73 with   more info

Delivery to Ireland - Small package €17.50 / Pallet €75.00

€771.95
Recommended extras
Horizontal Drain Kit for Jackoboard Aqua Line Shower Tray Board
€131.68
Jackoboard Wetroom Sealing Kit
€130.45

Product Overview

Jackoboard Aqua Line Easy Shower Tray Board for Linear Drain

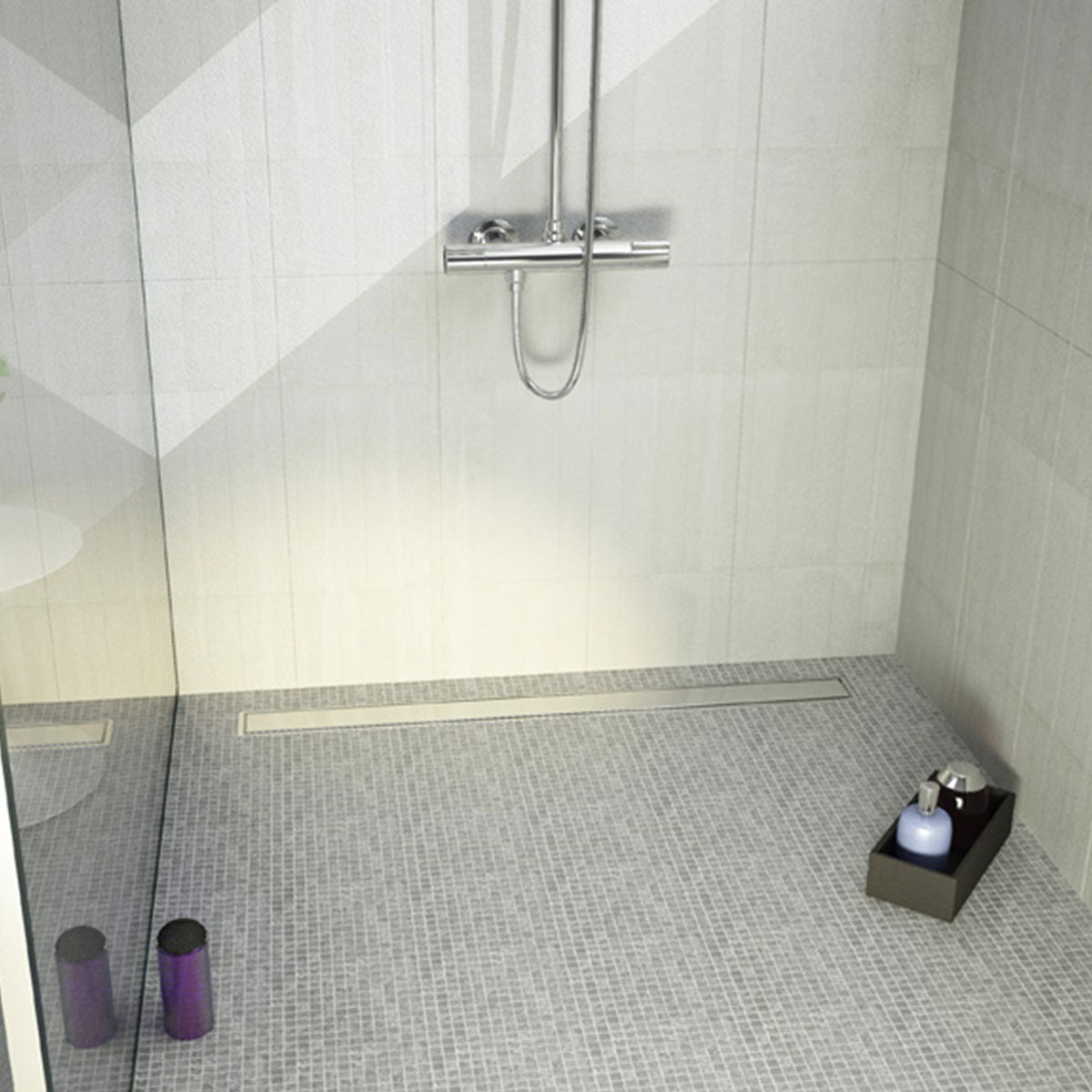

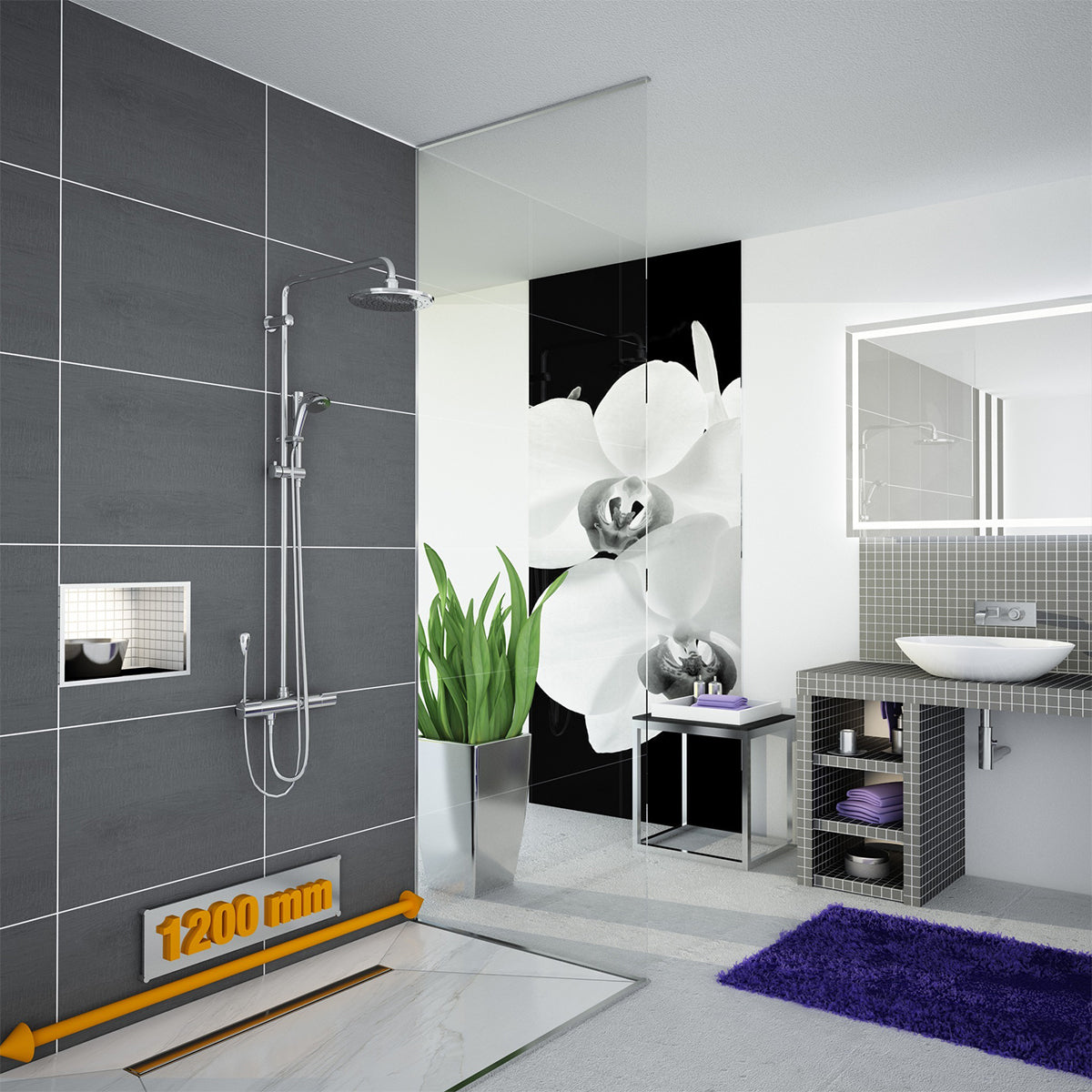

The JACKOBOARD Aqua Line Easy of low profile shower bases has been specifically designed to create wet rooms and walk-in showers in properties with suspended timber floors. However, you can also install the system in a solid floor if desired.

The JACKOBOARD Aqua Line Easy shower tray board consists of a shower base and a drain unit. Both components are designed for each other and no other drain unit is compatible with the Aqua Line Easy board. Each shower tray board comes

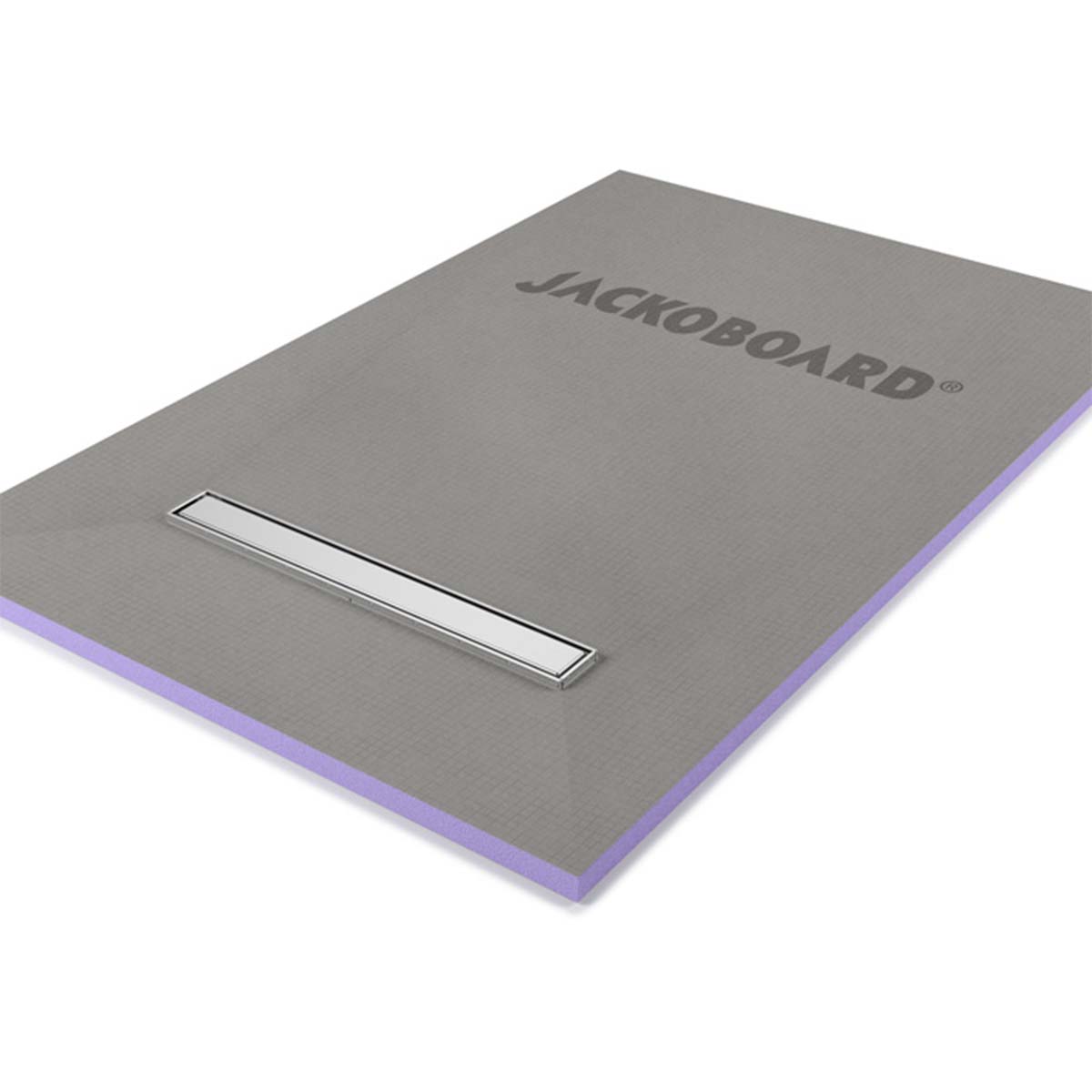

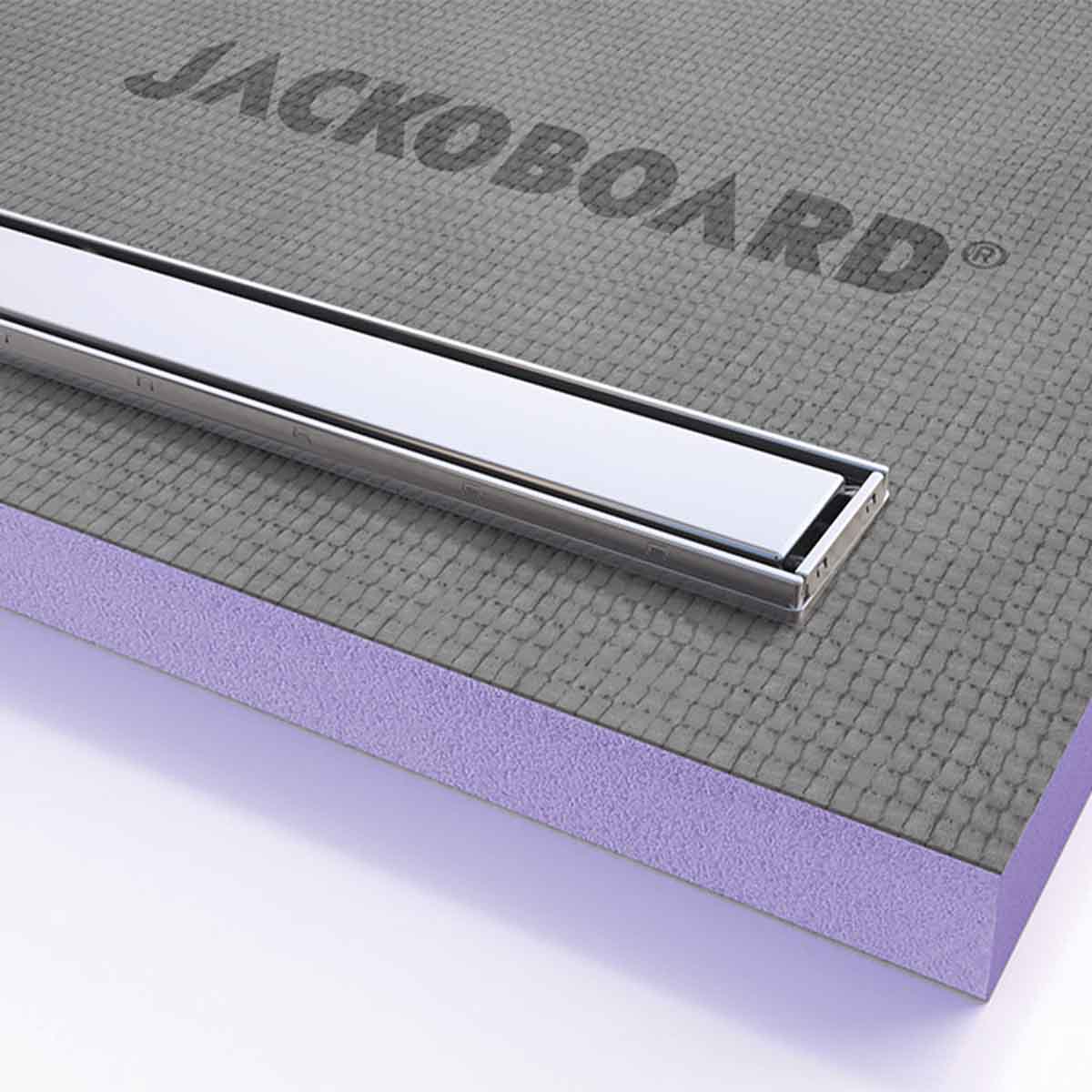

The shower tray board has a water-repellent core made of extruded polystyrene foam and an extremely low installation height with an incorporated drainage fall. They also feature a special coating on both sides that permits direct tiling without the need for additional preparatory work. The whole board is completely waterproof and stable - it is not affected by moisture, humidity or movement in the substrate.

To completely seal the installation area so it is totally waterproof it is highly recommended you use a sealing membrane kit such as the JACKOBOARD Wetroom Sealing Kit.

Shower Tray Board Features
  • 100% waterproof construction
  • Extremely low installation height
  • Bar and frame made of stainless steel
  • With special coating on both sides
  • Tiles can be applied directly
  • Excellent thermal insulation properties (see the downloadable specsheet)
  • Smooth, easy-clean surface with self-cleaning effect
  • Water trap height: 22 mm
  • Wheelchair-accessible
  • Compressive strength > 300 kPa
  • Sealed drain flange
  • Available in many sizes (see below)

Suitable for

  • Wood or concrete subfloor
  • Tiled floor finish
  • Use with wheelchairs (min 50mm sqm tiles)
  • Wet rooms
  • Level access
  • Raised on platform
  • Underfloor heating

Not suitable for

  • Vinyl floor finish
  • Micro-cement
  • Fitting direct on joists
Shower Tray Board Sizes  (Width x Length x Depth)

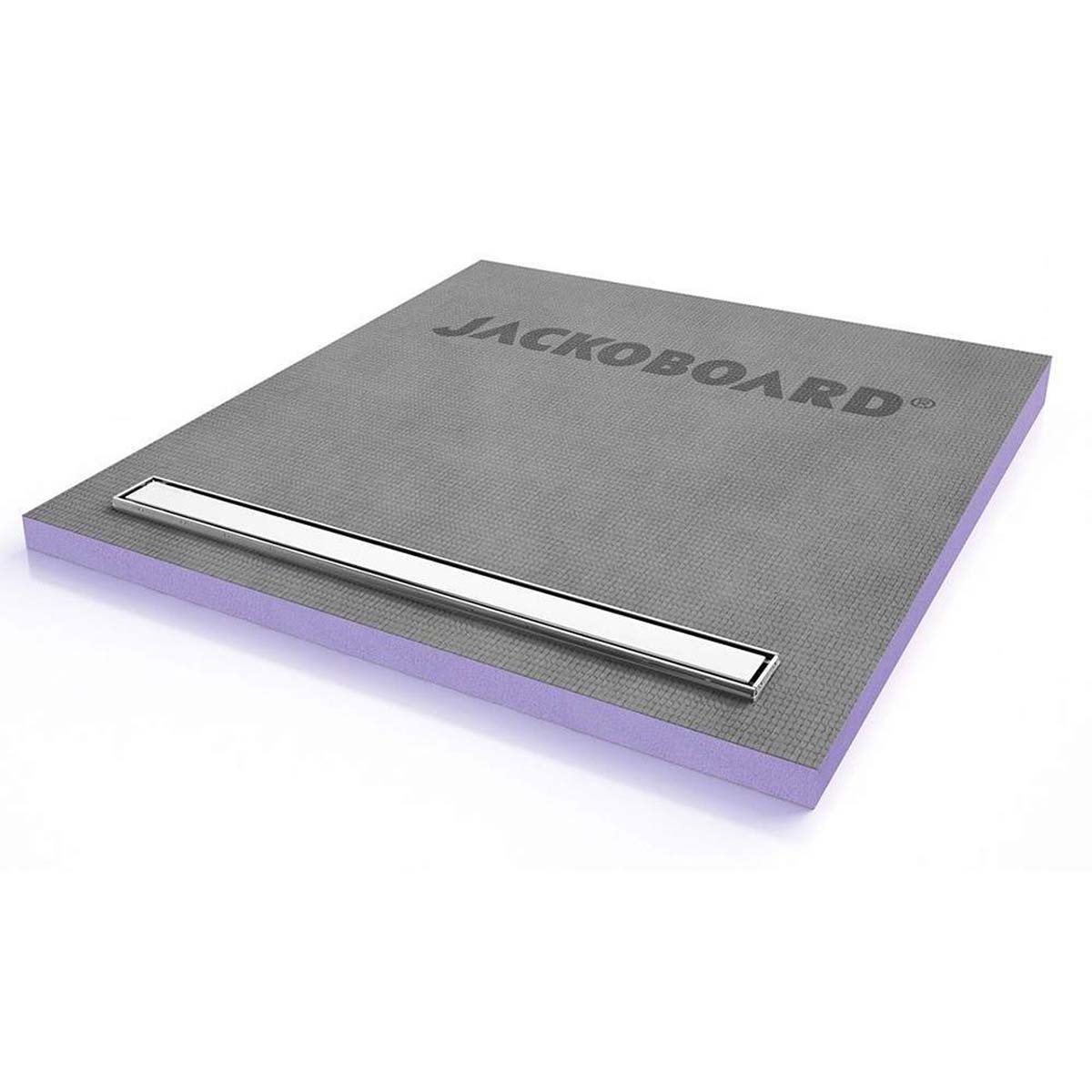

  • W 900 x L 900 x D 30mm

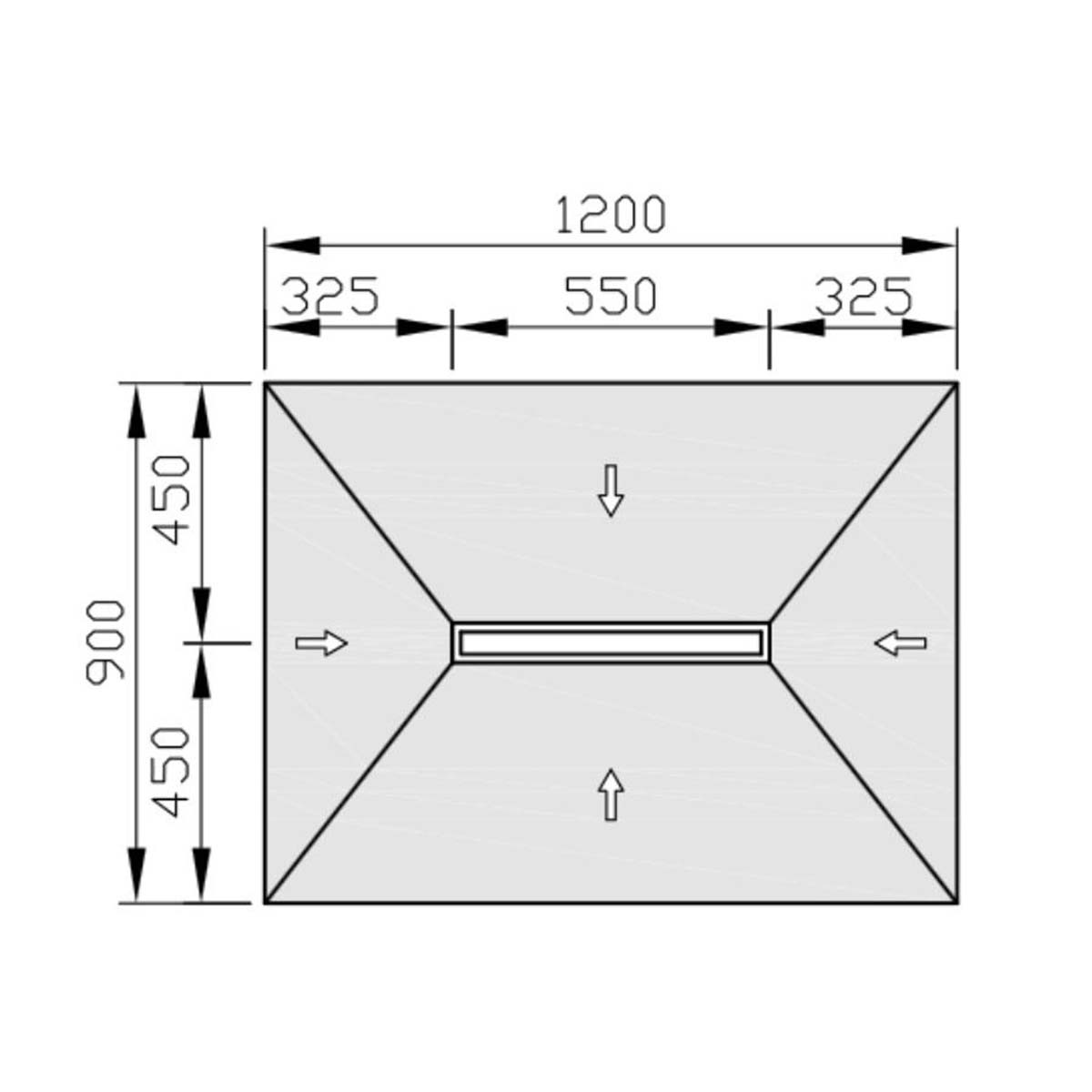

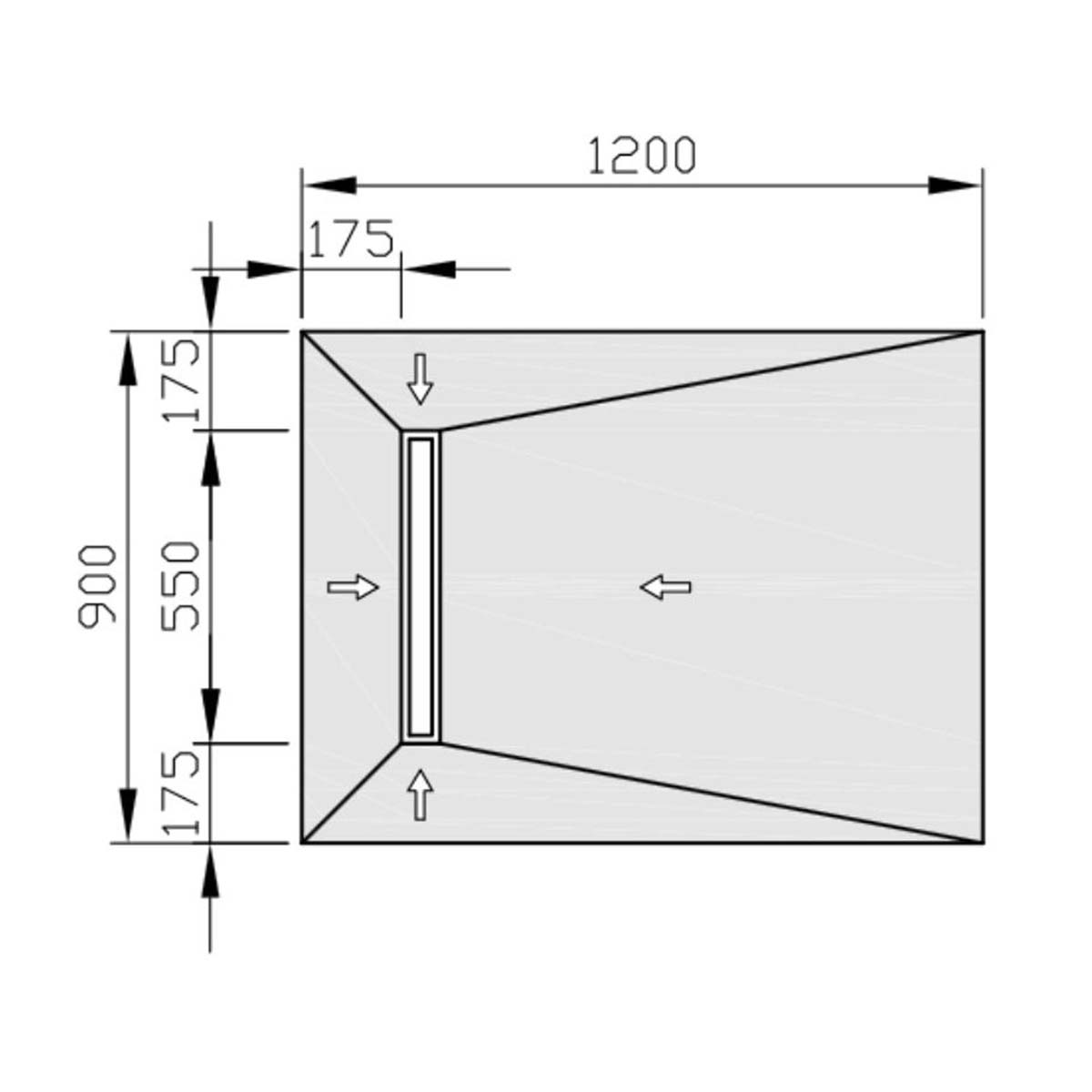

  • W 1200 x L 900 x D 30mm

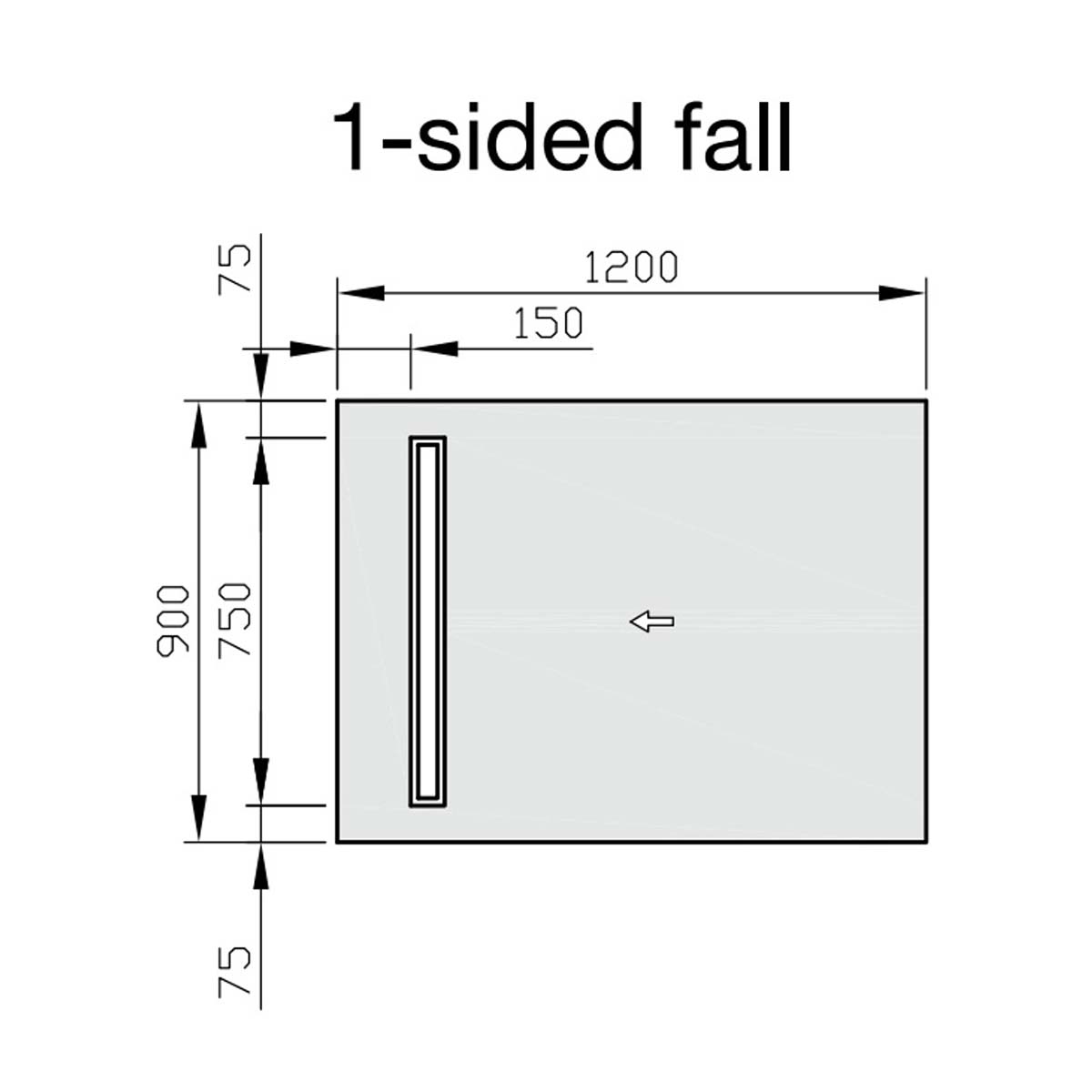

  • W 1200 x L 900 x D 40/25mm

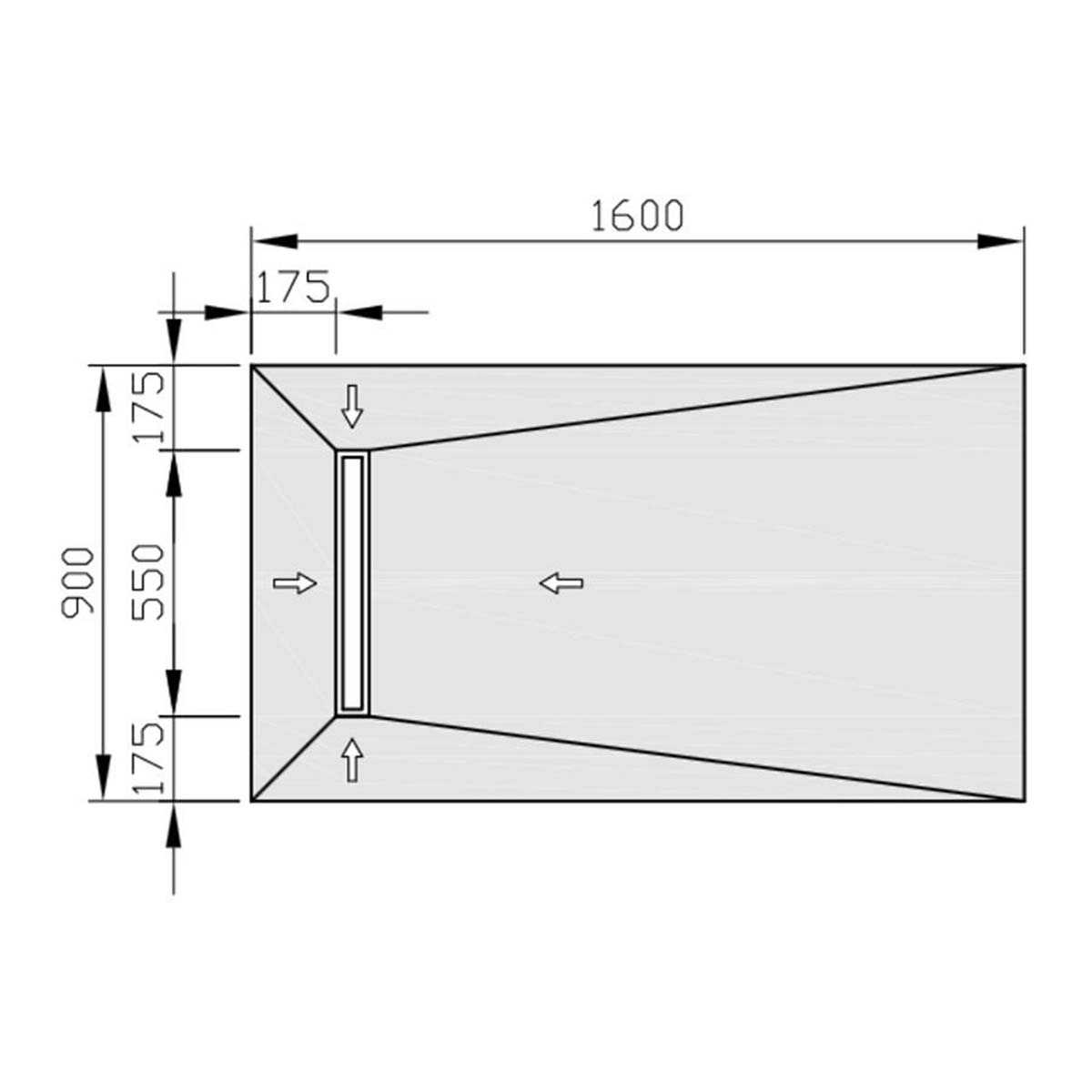

  • W 1600 x L 900 x D 30mm

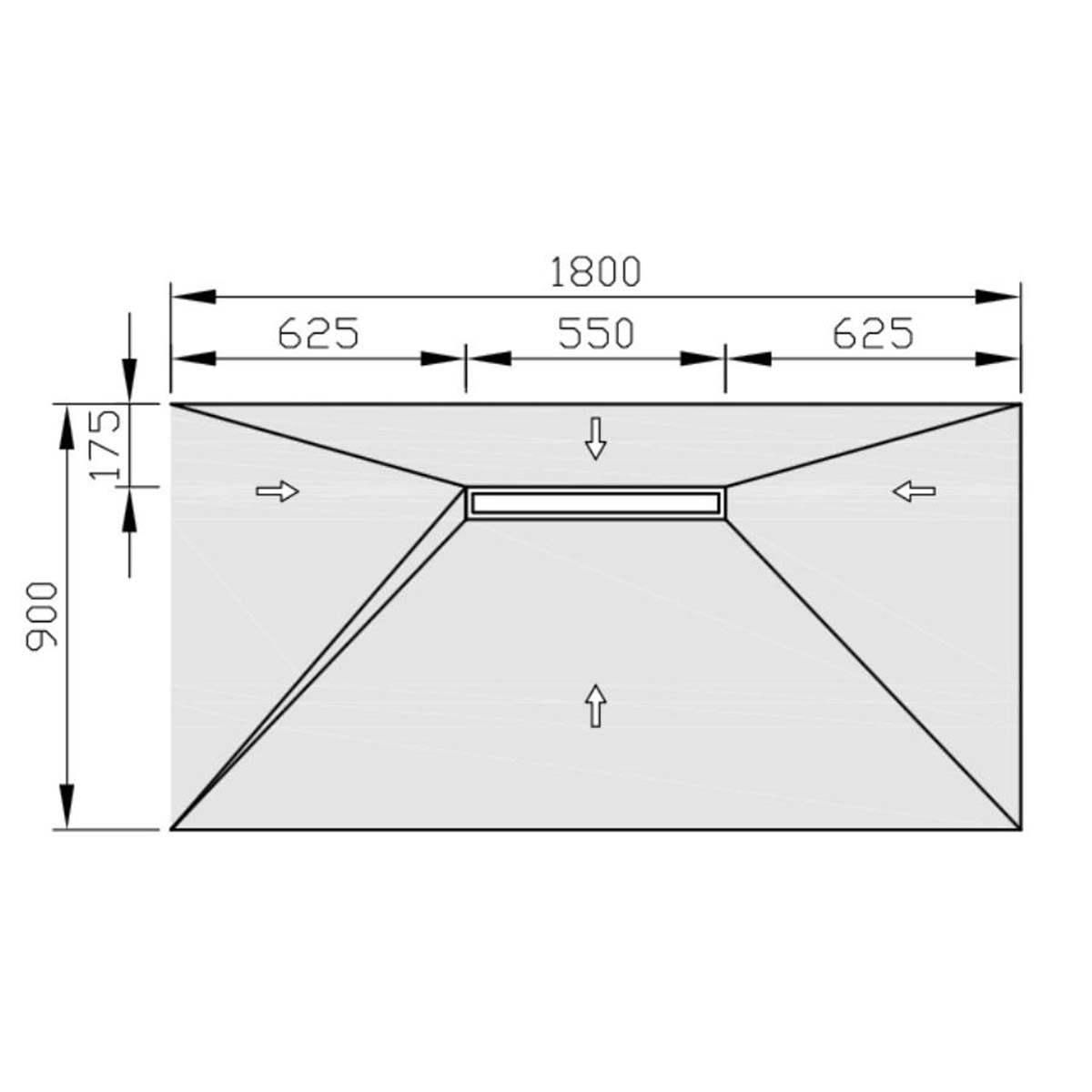

  • W 1800 x L 900 x D 30mm

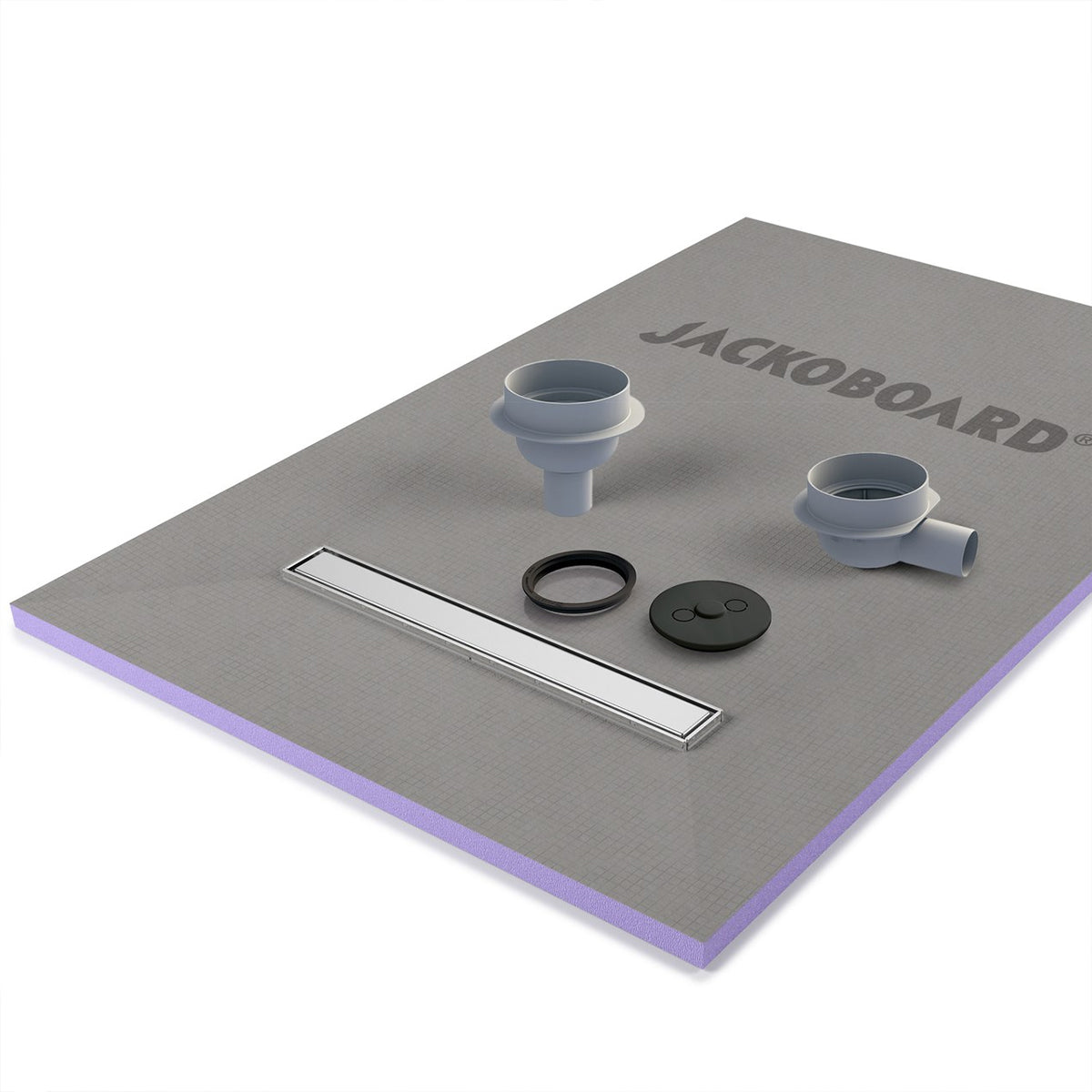

The drain kit comes with the following:

  • Retaining ring with seal ring
  • Protective cover
  • Trap cup (pre-fitted within base nozzle and removable for maintenance and cleaning)
  • Compression fit adapter
  • Solid stainless steel drain cover (can be inverted and tiled)
  • Drain not included. Sold separately. See product options
Shower Tray Board Specifications
Brand Jackoboard
Product Type Shower tray board
Shower Base Material Extruded polystyrene foam
Shower Base Shape Square & Rectangle
Colour Grey with purple
Thickness 30mm & 40/25mm
Waste type Linear
Waste position Multiple positions. See product options.
Drain Horizontal
Drain grate material Stainless steel
Guarantee 20 year manufacturer's guarantee

    Additional Information

    • Jackoboard Aqua shower boards are not self-supporting. In order to support the base firmly when creating a level-entry design on a suspended timber floor a sub-floor must be constructed between the joists using, for example, 18mm plywood.
    • Trimmable by 50mm off each edge
    • To fit the drain body under the floor the centre point of the drain must be at least 90mm from any floor joists.

    Product Download

    Jackoboard Aqua Line Easy Shower Base with Linear Drain Installation Instructions

    Jackoboard Aqua Line Easy Shower Base with Linear Drain - Suspended Timber Floors Installation Instructions

    Jackoboard Aqua Line Easy Shower Base with Linear Drain - Solid Floor Installation Instructions
