Drench FRAME Lite Shower Door Hinged To Inline Panel & Optional Side Panel

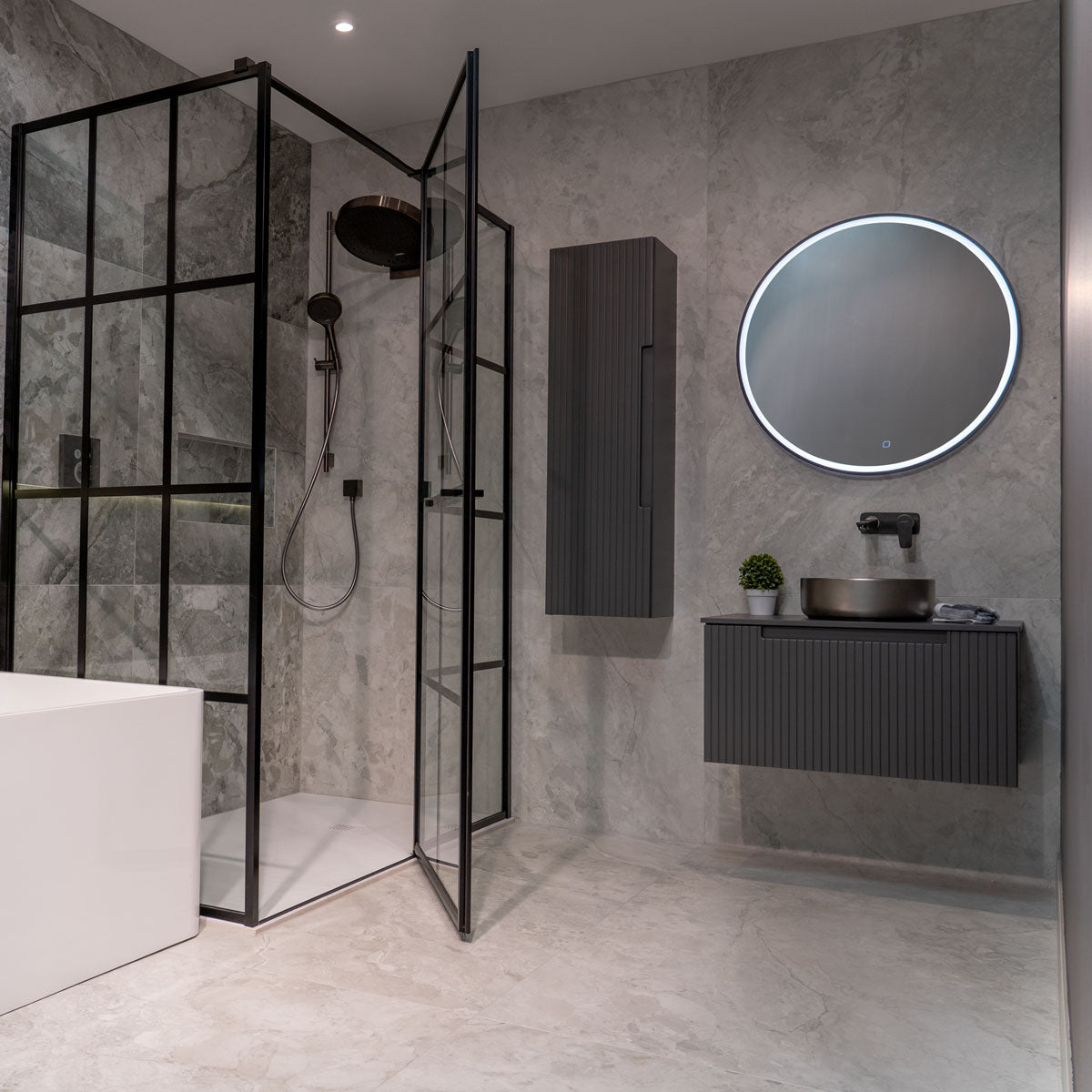

Elegant and practical, the Frame Lite Hinged to Inline Panel by Drench is a fantastic option for a wide range of bathrooms. The door widths range from 900mm up to 1600mm, and available in a Matt Black finish.
This 2100mm high shower door hinged to the fixed inline panel and operates on smooth-closing pivot hinges with a rise and fall mechanism. The shower door features a pull handle attached to the closing profile, both external and internal side; a 8mm toughened clear glass with easy clean coating, and magnetic closing creating a secure seal after the shower door is closed.

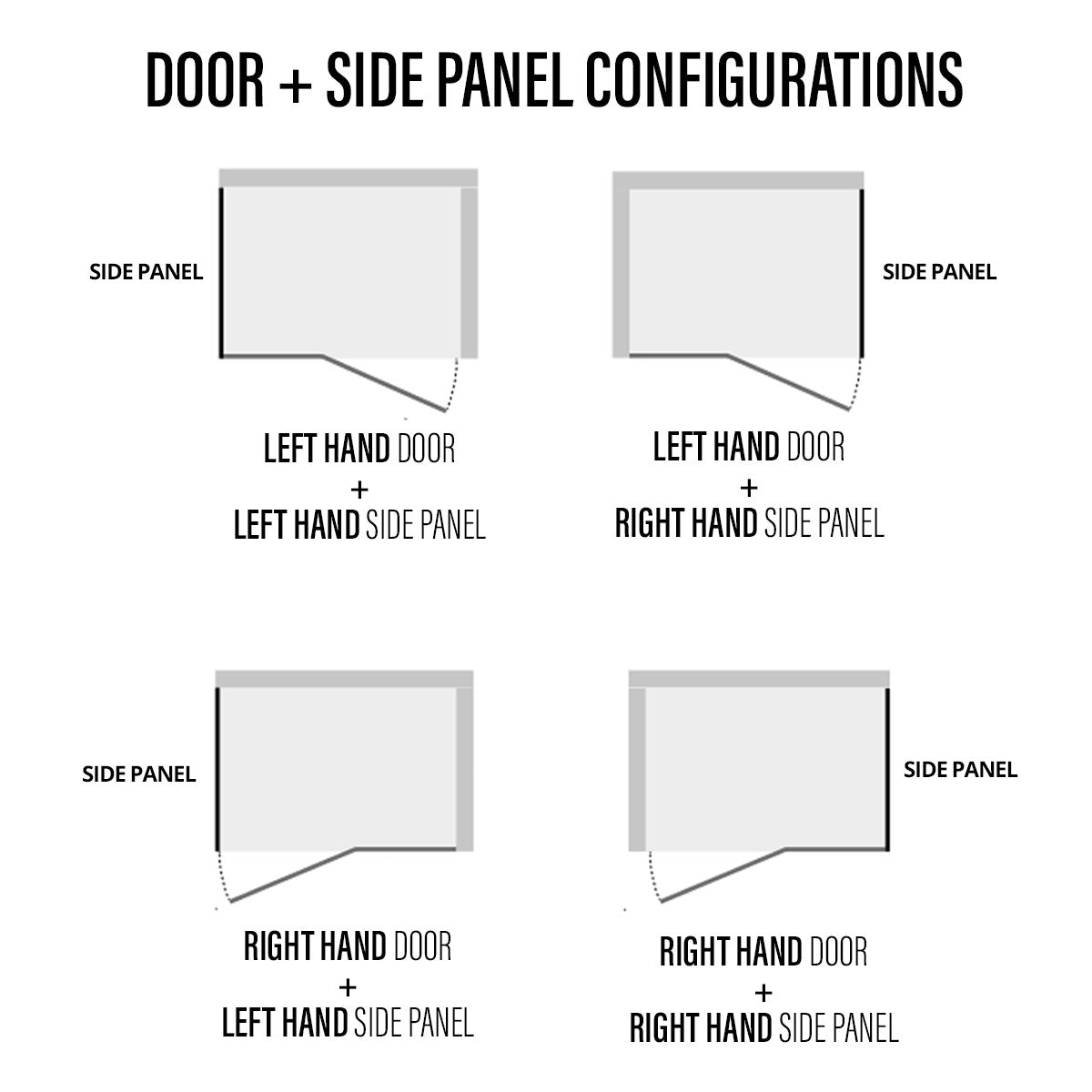

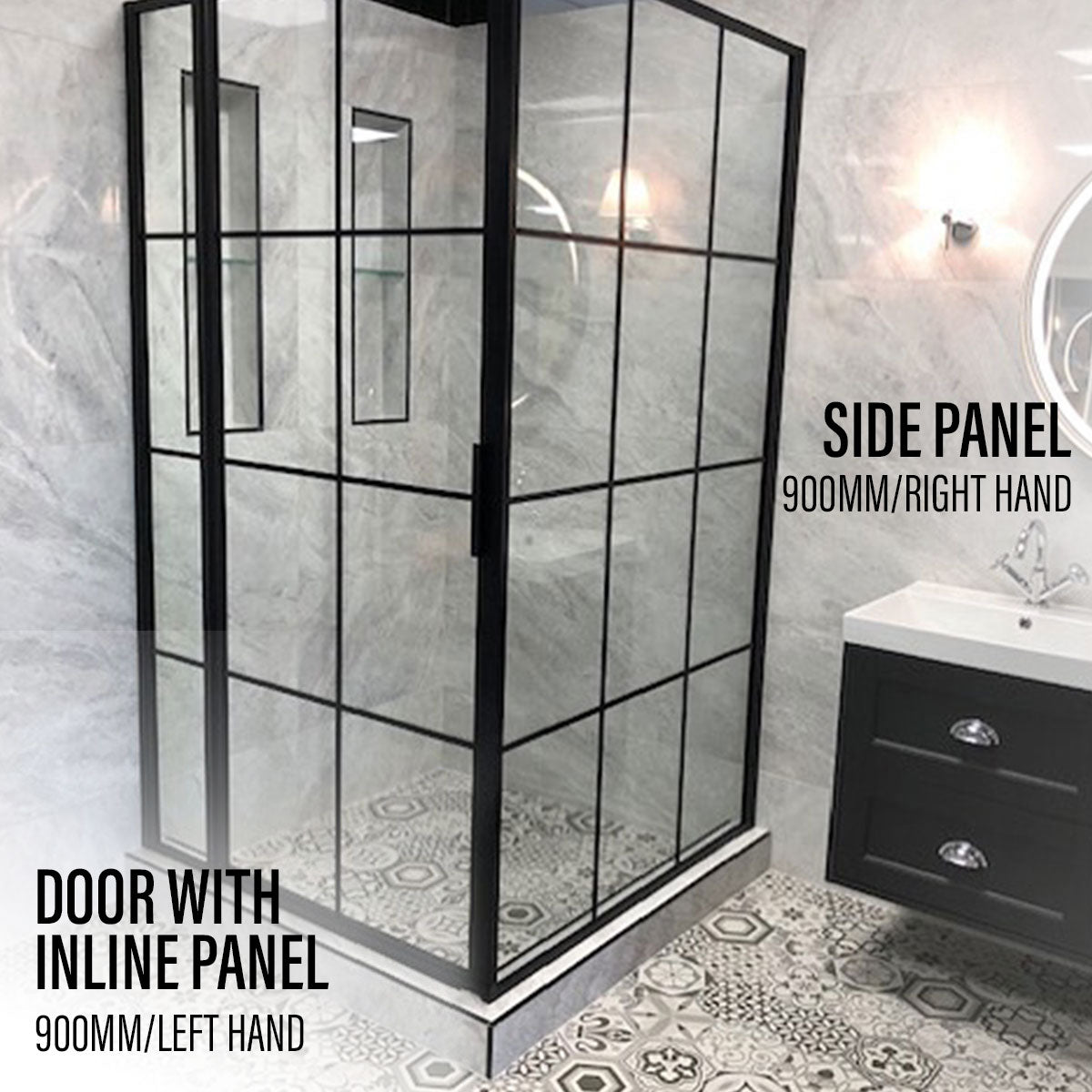

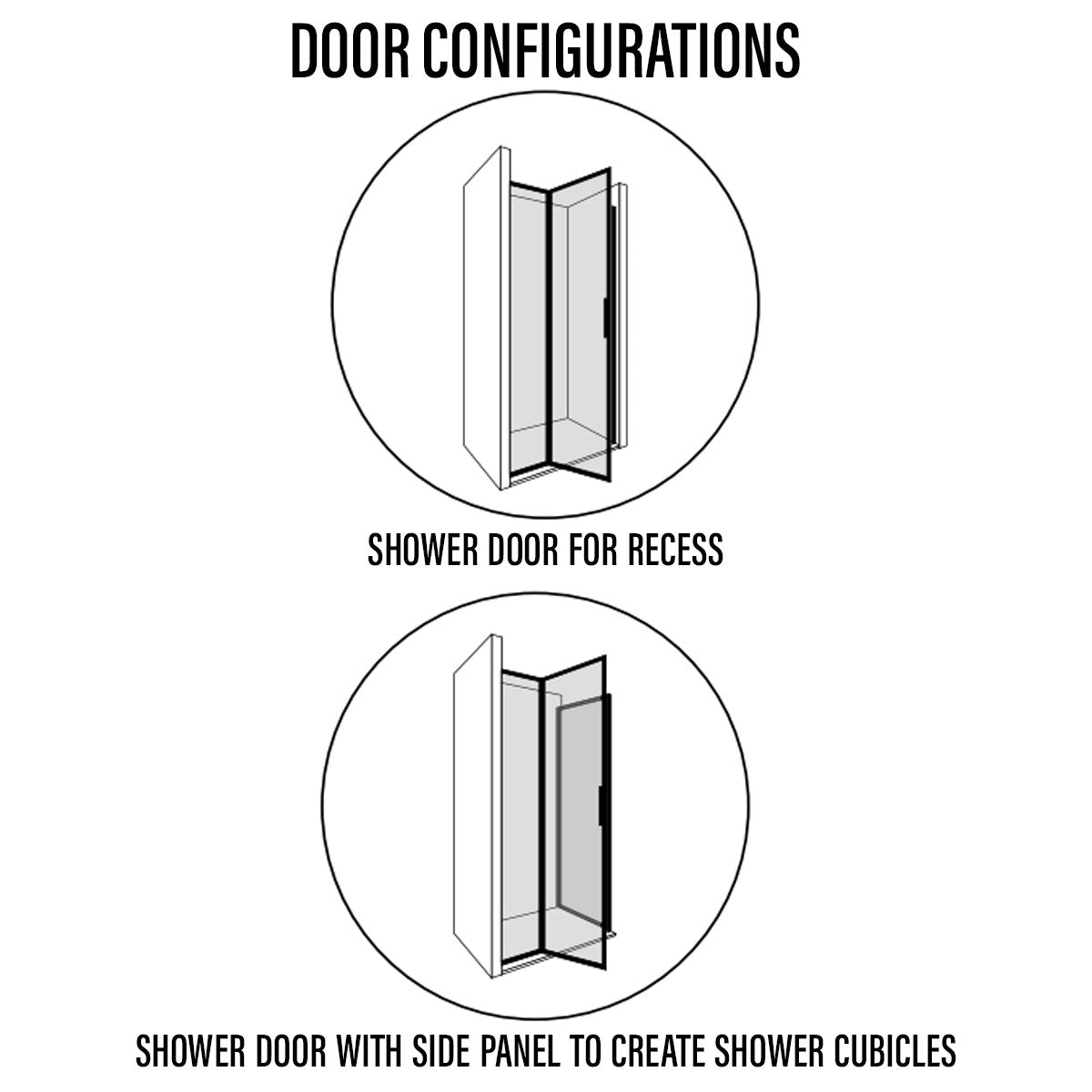

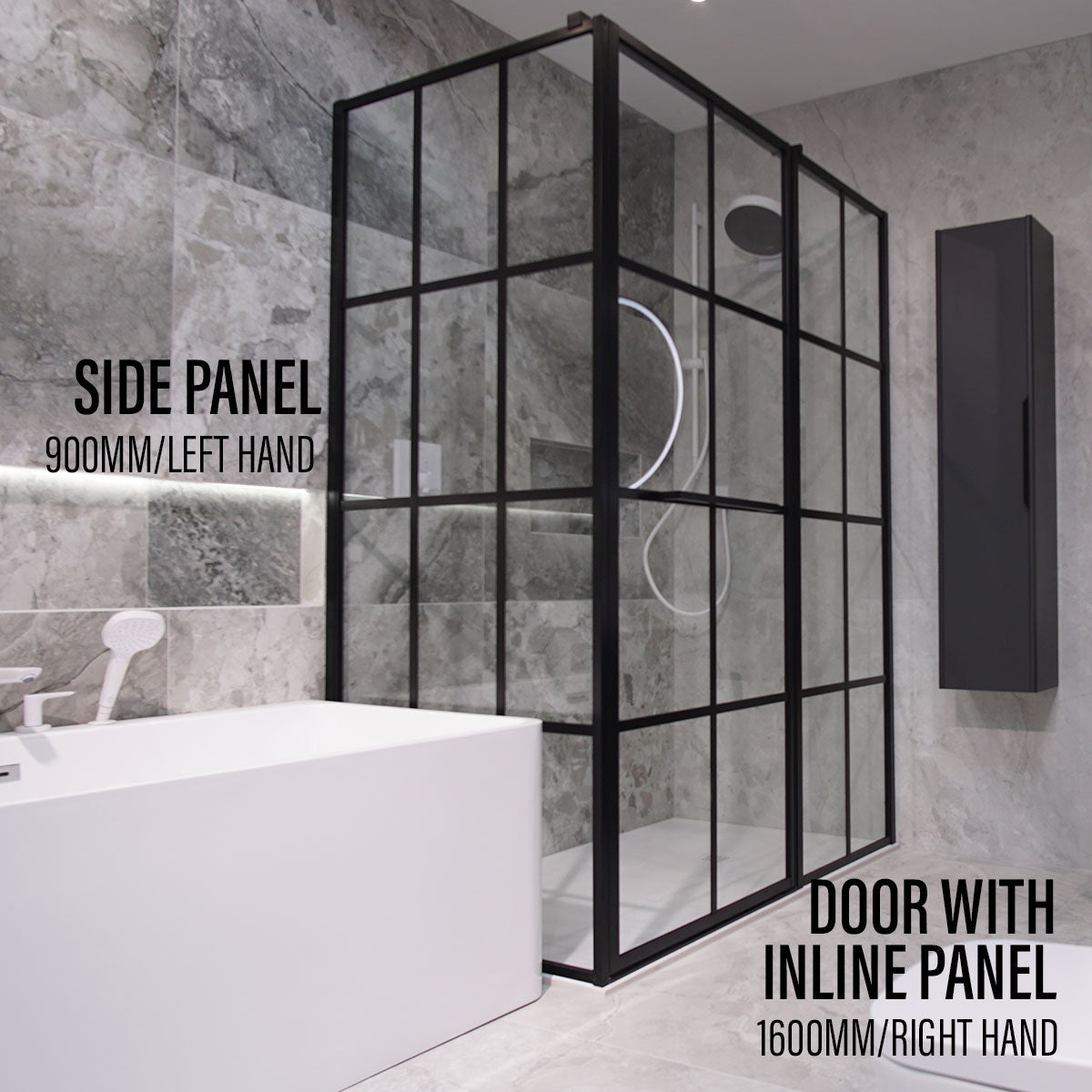

The shower door is suitable for a recess configuration as standard, but also compatible with a side panel to create a shower cubicle, and available for Left or Right hand options.
The shower door is supplied with a 5 year manufacturer's guarantee.
Shower door features
- Elegant matt black frame
- Hinged to the inline panel
- 8mm toughened clear glass with easy clean coating
- Outward opening door

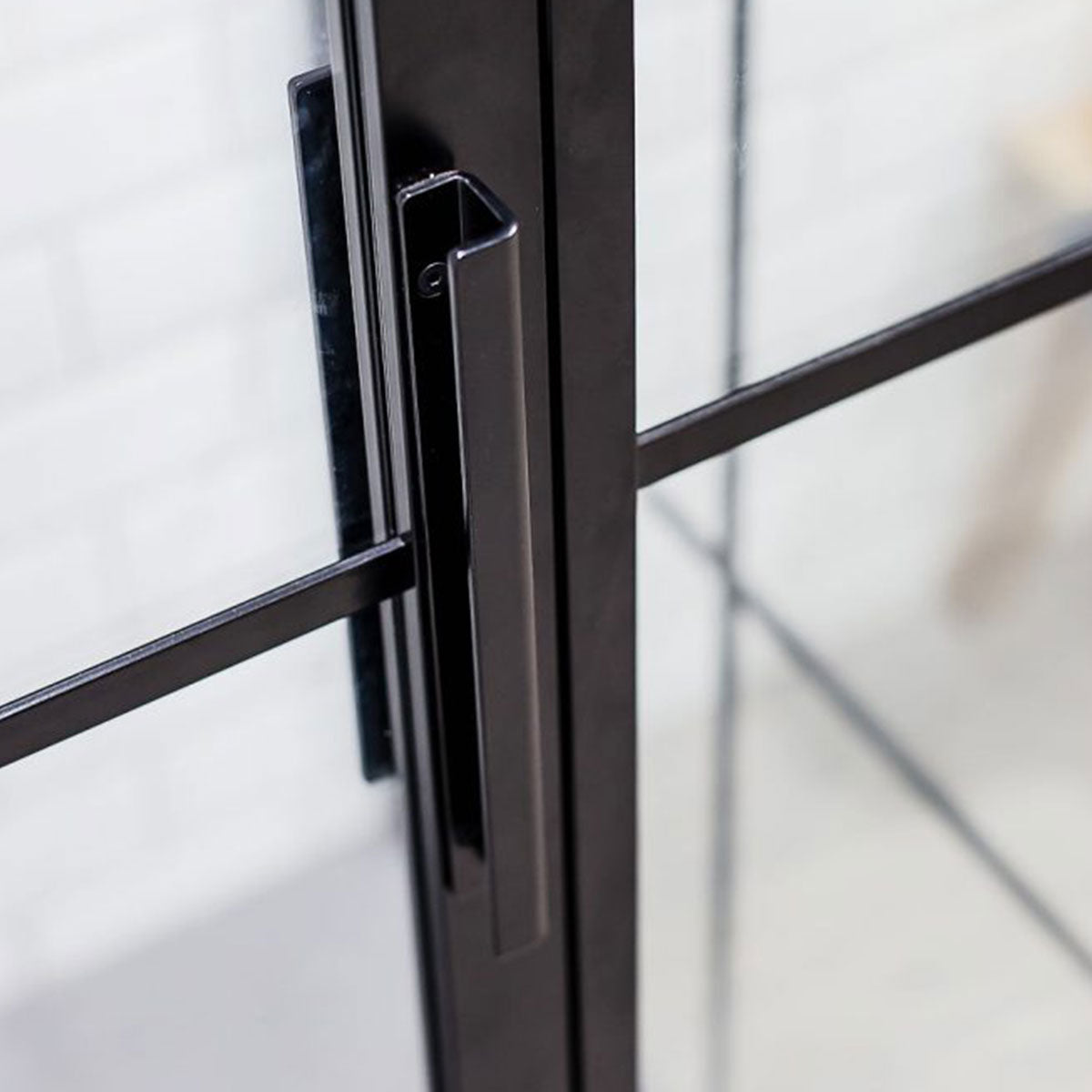

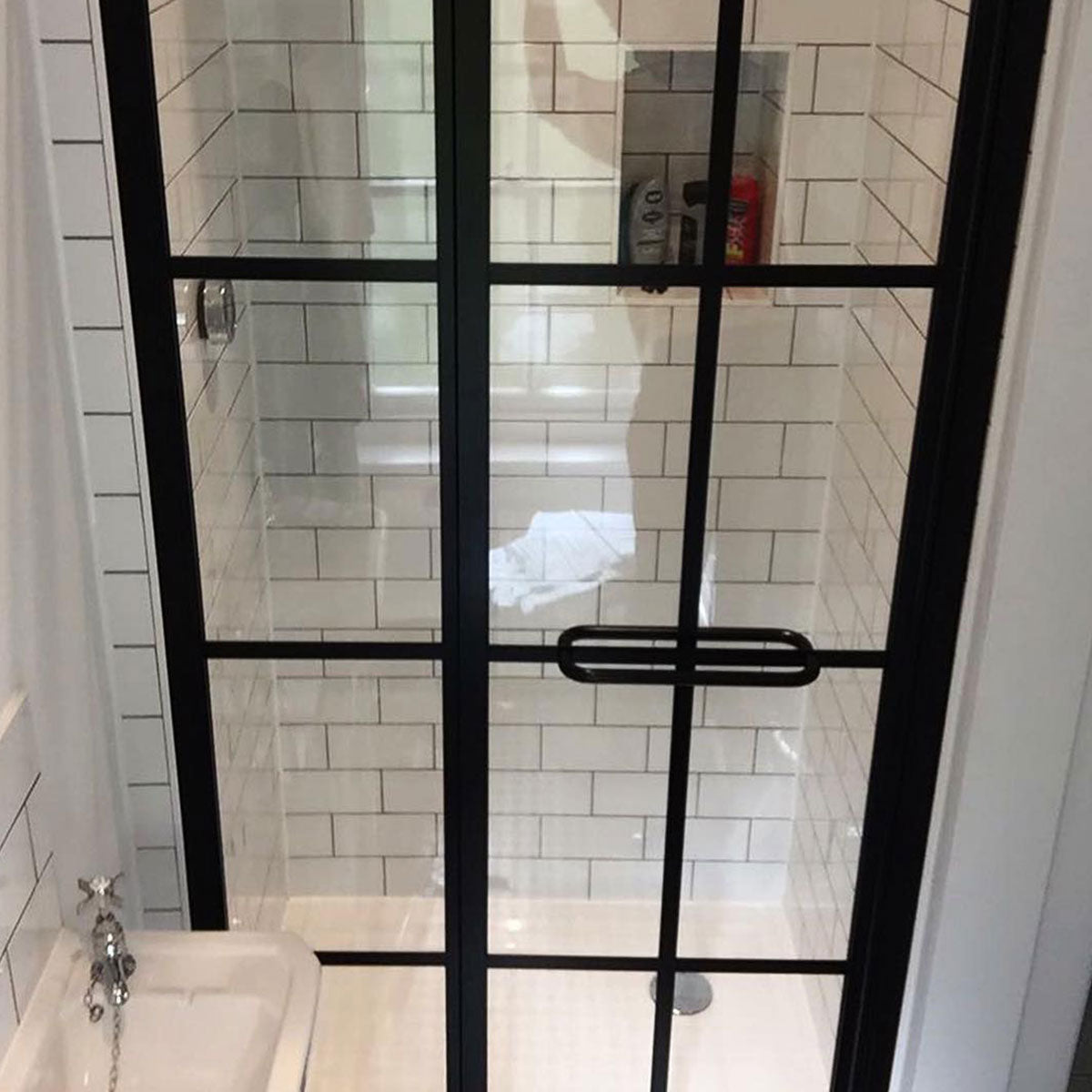

- Door comes with a pull handle as a standard which is attached to the closing profile, both external and internal side. The Horizontal handle with towel holder is also available as an option. Please note: If the horizontal handle is chosen the standard pull handle will be replaced with the horizontal handle.

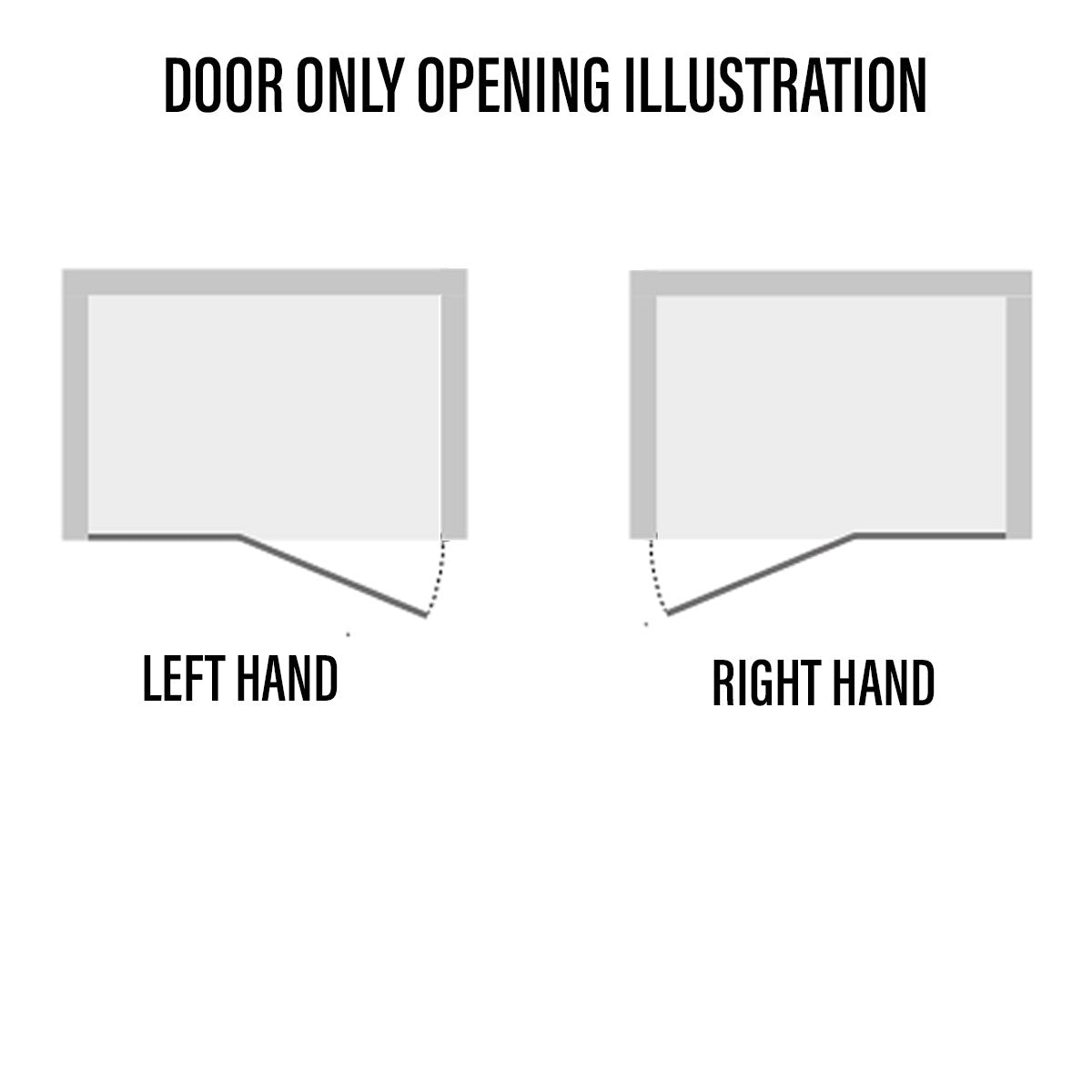

- Door left or right hand options are available

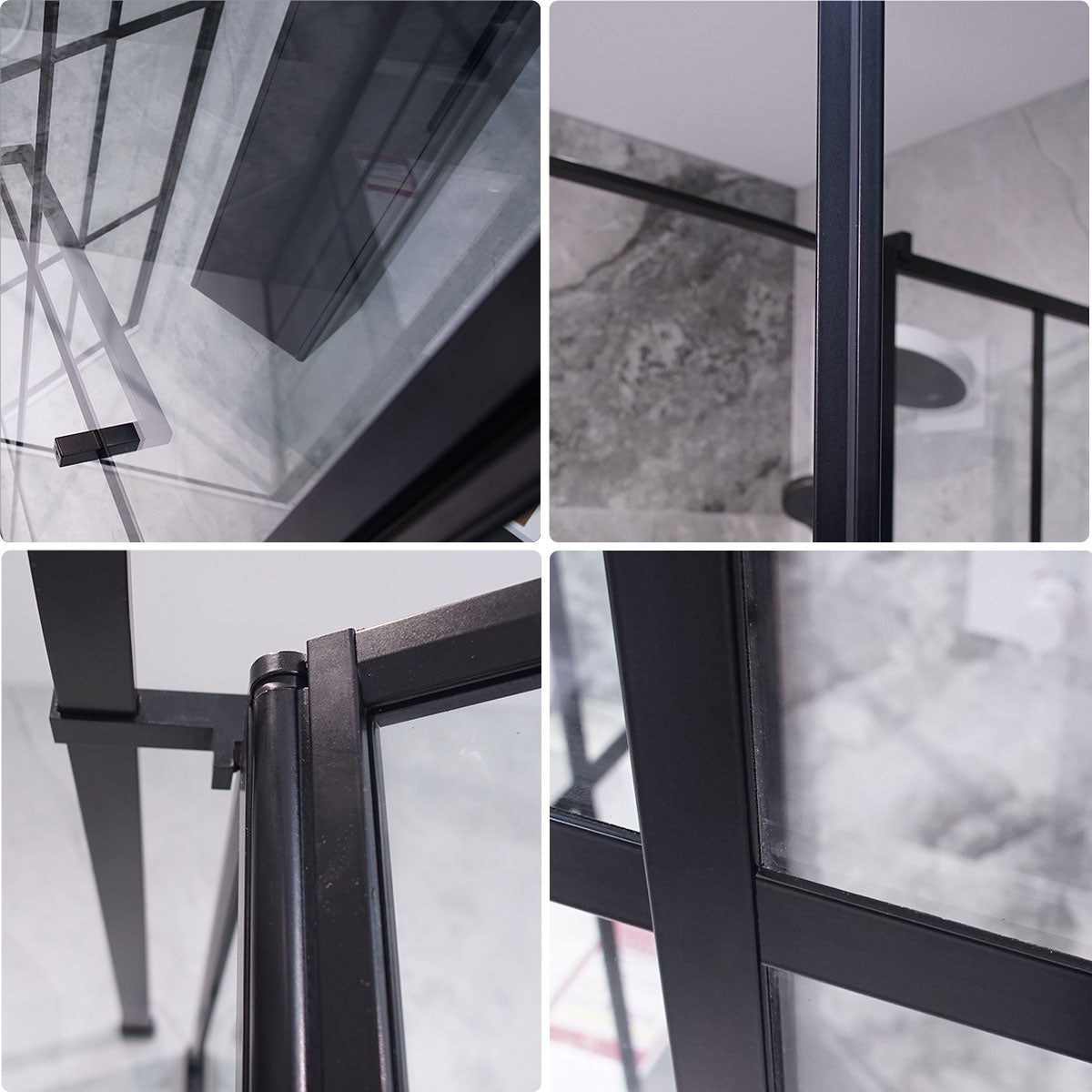

- Pivot hinge with a 5mm rise and fall mechanism
- Pivot swing can be set from 0 to 180 degrees position
- Magnetic closing for secure seal
- Suitable for recess and corner situations
- Comes complete with pull handle, fixings and sealing components
- 5 year manufacturer's guarantee
Shower door specifications
|Product Type||Hinged Door with Inline Panel|

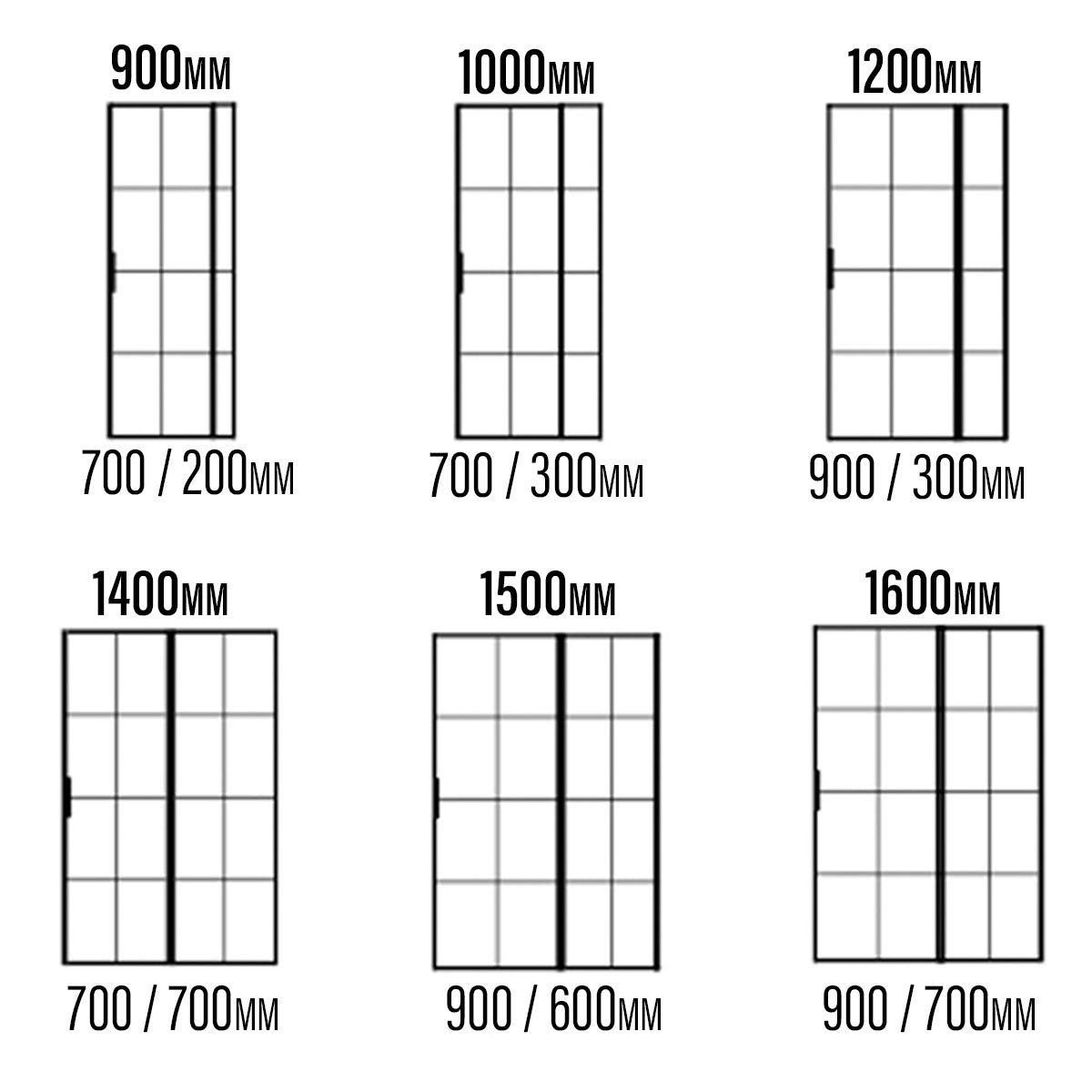

|Overall Door Widths (incl. inline panel)||900 - 1600mm|
|Side Panel Widths||700 - 1000mm|
|Glass Thickness||8mm toughened glass door|
|Glass Finish||Clear with easy clean coating|
|Frame Finish||Matt Black
|Door Adjustments||See the table below|
Door & Side Panel Adjustments
Shower Door Adjustments
|Door Size (mm)||Door Only Adjustment Range||Door with Side Panel Adjustment Range||Door Only Support Bar Type|
|900||861 - 899mm||871 - 890mm||Angle Support Bar|
|1000||961 - 999mm||971 - 990mm||Angle Support Bar|
|1200||1161 - 1199mm||1171 - 1190mm||Parallel Support Bar|
|1400||1361 - 1399mm||1371 - 1390mm||Parallel Support Bar|
|1500||1461 - 1499mm||1471 - 1490mm||Parallel Support Bar|
|1600||1561 - 1599mm||1571 - 1590mm||Parallel Support Bar|
Side Panel Adjustments
|Side Panel Size (mm)||Side Panel Adjustment Range||Door With Side Panel Support Bar Type|
|700||671 - 690mm||Double Support Bar|
|800||771 - 790mm||Double Support Bar|
|900||971 - 990mm||Double Support Bar|
|1000||971 - 990mm||Double Support Bar|
