Deluxe Steam Shower Generator Kit
The Deluxe Steam Generator is a quality product made in the USA, The steam generator is small enough to fit in a vanity unit but powerful enough for the largest enclosures.
Why add steam to your life?
An in-home steam shower can be a special place, a source of comfort you look forward to each day. If you step into steam feeling tired or sore, chances are you’ll come out feeling replenished, physically and mentally.
The Deluxe Steam Shower Generator kit has everything you need for years of dependable service.

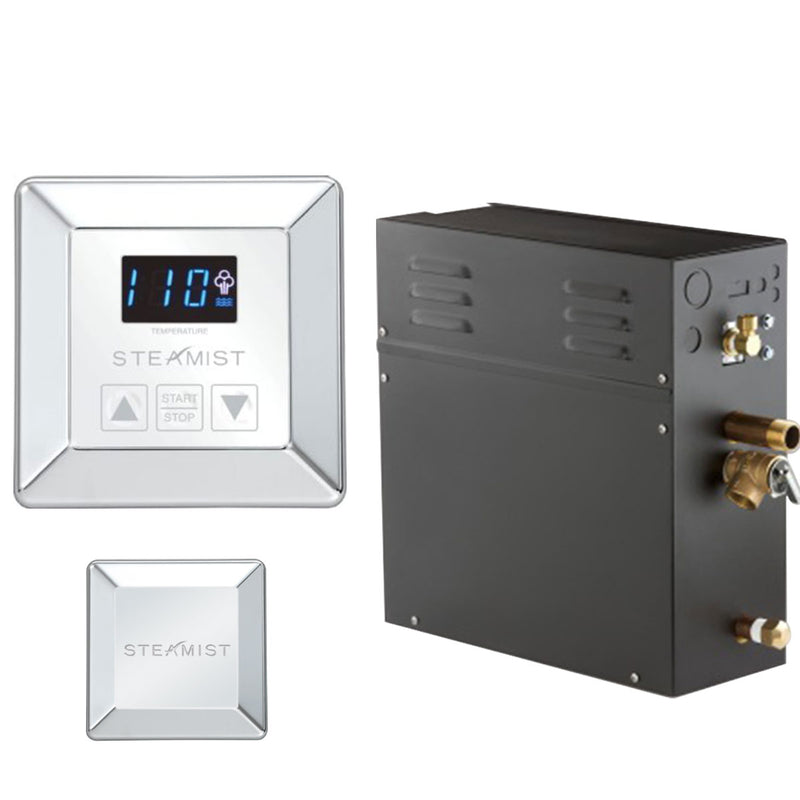

The steam kit includes:
- Steam Generator
- Thermostatic Control Panel
Steam generator features
- Available for different room sizes. Please see our sizing guide below to choose the right one for you.
- Compact design for installation in a vanity, closet, insulated attic or basement
- Quality build made in the USA built with long lasting materials
- Black casing

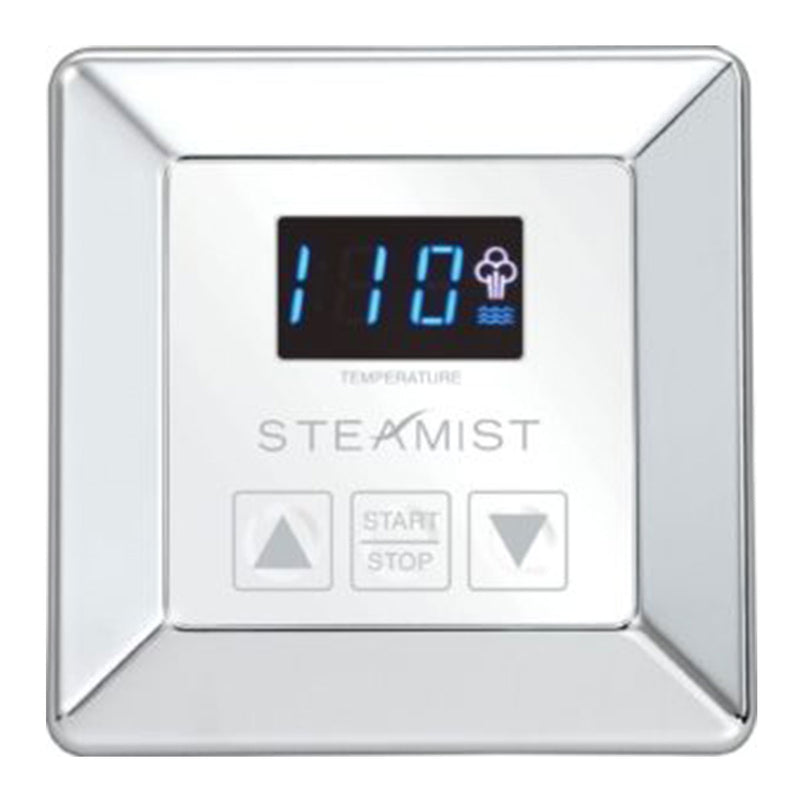

Thermostatic control features
The thermostatic in-shower control turns the system on and off while also allowing you to set both time and temperature to your most comfortable levels. It comes in a timeless polished chrome.
- Digital Thermostatic control
- Dual Temperature Sensor technology for superior temperature control
- Stylish polished chrome colour
The Steamhead is designed for smooth, even dispersal of steam into the steam shower, providing user comfort without uncomfortable hot spots.
- Stylish polished chrome colour
- All the generators have the option to add a drain down feature, which is recommended where heavy usage is expected.
- Hard water areas should consider adding an inline water conditioner to extend the life expectancy.
- The safety valve must be ﬁtted to a discharge pipe.
- The steam outlet pipe must be 22mm and be appropriately insulated.
Steam Generator Sizing Guide
- Measure then Multiply the Length x Width x Height (in metres) of the steam enclosure to determine the Metric Volume(M3) Example: 1.5m (L) x 1.8m (W) x 2.4m (H) = 6.48m3
- Material Adjustment:
For natural stone or marble, multiply by 2.0.
For ceramic or porcelain tile, or glass block, multiply by 1.35.
- Exterior Wall Adjustment:
For one, multiply by 1.1; for two, multiply by 1.3
- Select a Generator
Select a generator with a “Maximum Cubic Metre Range” that is equal to or greater than your Adjusted Cubic Metre. In this example we have an Adjusted Cubic Metre of 14.25m3
Note: For optimum performance ceiling height should not exceed 2.5m (3m max) and must be sloped or barrelled effect to stop water droplets.
- Example: The example is based on a 1 m. x 2 m. x 2.5 m. high room with marble walls and one exterior wall.
|Cubic Metres:||1 x 2 x 2.5||= 5|
|Material Adjustment:||5 x 2.0||= 10|
|Exterior Wall Adjustment:||10 x 1.2||= 12|
|Adjusted Cubic Metres:||= 12|
In this example, you would select the 10 kW generator.
These variables are for optimum performance, if your walls and ceiling are constructed of a cement based insulation board there would be no need for Additions. If you are unsure feel free to contact us.
